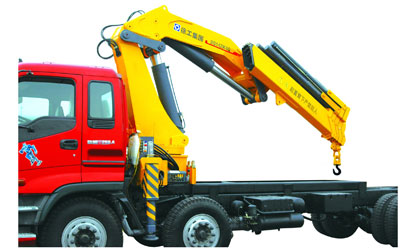

Truck mounted crane
SQ14ZK4Q
ModelSQ14ZK4QUnitMax Lifting Moment35t.mMax Lifting Capacity14000kgRecommend Power Needed At Recomme
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Moment | t.m | 35 |
| Max Lifting Capacity | kg | 14000 |
| Recommend Power Needed At Recommend Oil Flow | kw | 32 |
| Max Oil Flow of Hydraulic System | L/min | 63 |
| Rated Pressure Of Hydraulic System | MPa | 26 |
| Oil Tank Capacity | L | 220 |
| Rotation Angle ((360°)All Rotation) | — | 。 |
| Crane Weight | kg | 4800 |
| Installation Space | mm | 1300 |
| Choice of Chassis | — | BJ1317VNPJJ-S5; NXG1310D3ZEX |
| Working radius(m) | — | 4.046 |
| Lifting capacity(kg) | — | 8400 |
