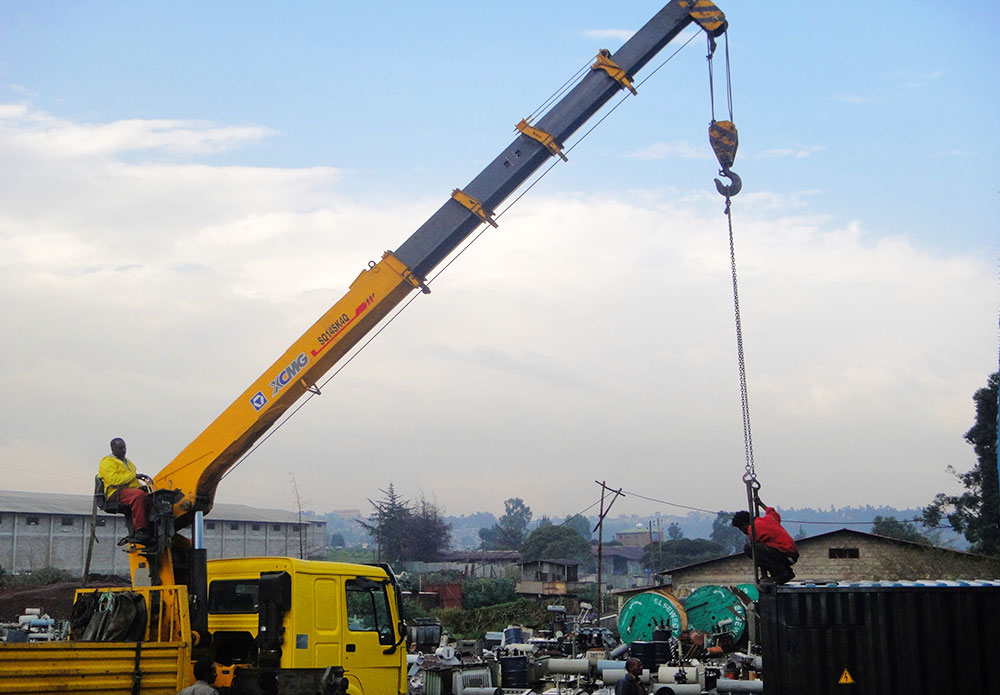

Truck mounted crane
SQ14SK4Q
ModelSQ14SK4QUnitMax Lifting Capacity14000kgMax Lifting Moment35T.MRecommend Power32kwMax Oil Flow o
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Capacity | kg | 14000 |
| Max Lifting Moment | T.M | 35 |
| Recommend Power | kw | 32 |
| Max Oil Flow of Hydraulic System | L/min | 63 |
| Max Pressure of Hydraulic System | MPa | 26 |
| Oil Tank Capacity | L | 160 |
| Rotation Angle | — | All Rotation |
| Crane Weight | kg | 4800 |
| Installation Space | mm | 1300 |
| Choice of Chassis | — | BJ1317VNPJJ-S5; NXG1310D3ZEX |
| Working radius(m) | — | 5 |
| Lifting capacity(kg) | — | 6000 |
