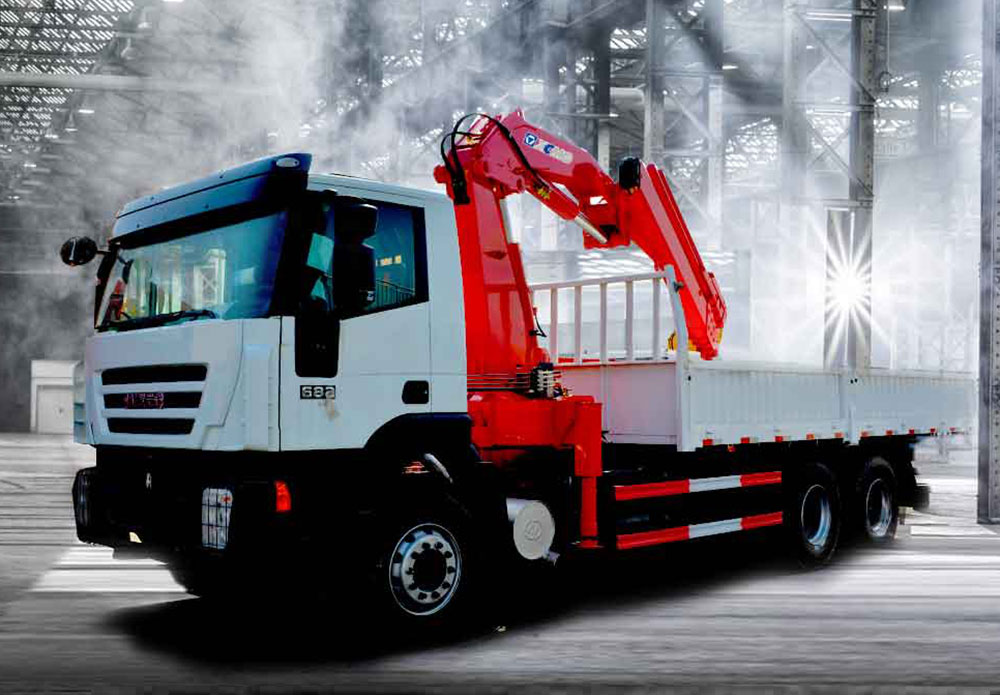

Truck mounted crane
SQ12ZK3Q
ModelSQ12ZK3QUnitMax Lifting Moment30t.mMax Lifting Capacity12000kgRecommend Power Needed At Recomme
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Moment | t.m | 30 |
| Max Lifting Capacity | kg | 12000 |
| Recommend Power Needed At Recommend Oil Flow | kw | 32 |
| Max Oil Flow of Hydraulic System | L/min | 55 |
| Rated Pressure Of Hydraulic System | MPa | 30 |
| Oil Tank Capacity | L | 160 |
| Rotation Angle ((360°)All Rotation) | — | 度 |
| Crane Weight | kg | 4130 |
| Installation Space | mm | 1400 |
| Choice of Chassis | — | DFL1250A9 ; DFL1311A3 ; CA1240PK2L7T4EA81; EQ5201GFJ6; BJ1317VNPJJ-S5; BJ5253ZKPJJ; DFL1253AX; |
| Working radius | m | 4.2 |
| Lifting capacity | kg | 6900 |
