Truck mounted crane

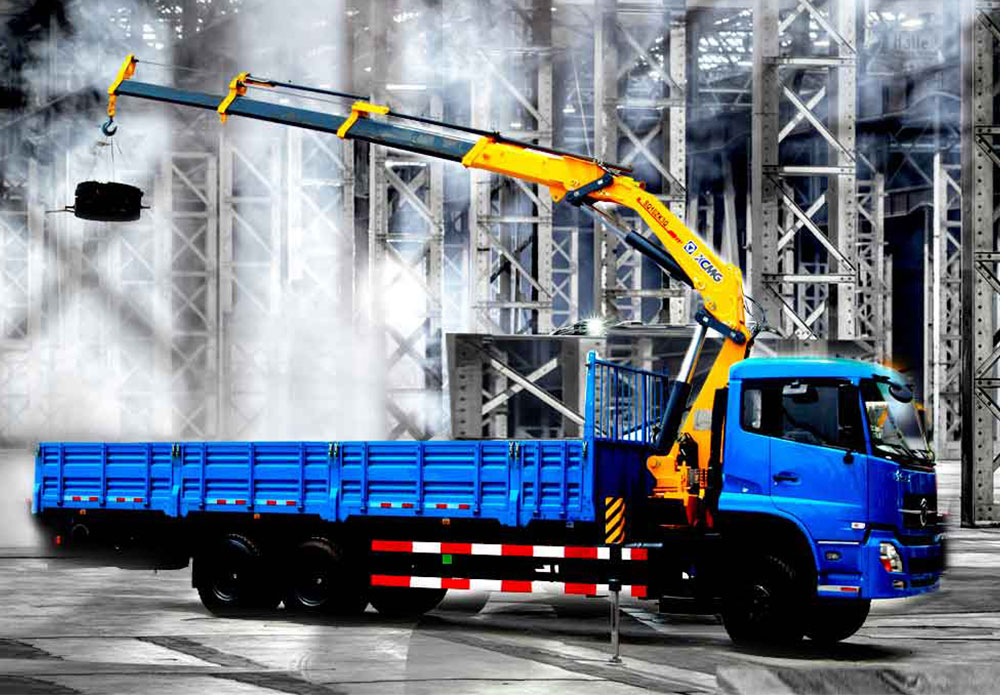

SQ10ZK3Q
ModelSQ10ZK3QUnitMax Lifting Moment20t.mMax Lifting Capacity10000kgRecommend Power Needed At Recomme
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Moment | t.m | 20 |
| Max Lifting Capacity | kg | 10000 |
| Recommend Power Needed At Recommend Oil Flow | kw | 28 |
| Max Oil Flow of Hydraulic System | L/min | 40 |
| Rated Pressure Of Hydraulic System | MPa | 28 |
| Oil Tank Capacity | L | 160 |
| Rotation Angle ((360°)All Rotation) | — | 。 |
| Crane Weight | kg | 3477 |
| Installation Space | mm | 1150 |
| Choice of Chassis | — | DFL1250A9 ; CA1240PK2L7T4EA81; HFC1202KR1K3; EQ5201GFJ6; CA1200PK2L7T3EA80; BJ1317VNPJJ-S5; BJ5253ZKPJJ; CA1253P7K2L11T1E ; EQ1252GFJ; DFL1253AX; |
| Working radius | m | 4.17 |
| Lifting capacity | kg | 4600 |
