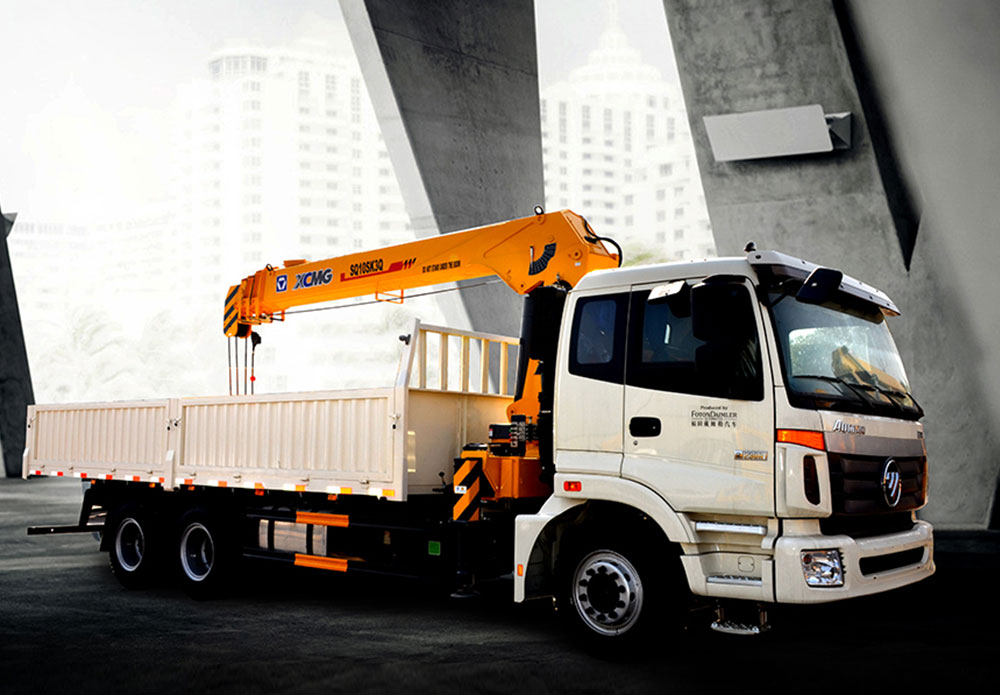

Truck mounted crane
SQ10SK3Q
ModelSQ10SK3QUnitMax Lifting Capacity10000kgMax Lifting Moment25T.MRecommend Power28kwMax Oil Flow o
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Capacity | kg | 10000 |
| Max Lifting Moment | T.M | 25 |
| Recommend Power | kw | 28 |
| Max Oil Flow of Hydraulic System | L/min | 63 |
| Max Pressure of Hydraulic System | MPa | 26 |
| Oil Tank Capacity | L | 160 |
| Rotation Angle | — | All Rotation |
| Crane Weight | kg | 3800 |
| Installation Space | mm | 1150 |
| Choice of Chassis | — | DFL1250A9 ; CA1240PK2L7T4EA81; CA1200PK2L7T3EA80; BJ1317VNPJJ-S5; BJ5253ZKPJJ; CA1253P7K2L11T1E; EQ1252GFJ; DFL1253AX; |
| Working radius | m | 4.5 |
| Lifting capacity | kg | 5500 |
