Hydraulic truck crane

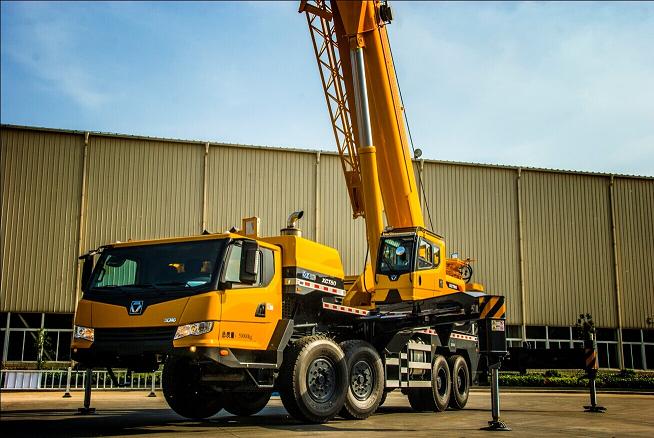

XCT80
XCT80 — Hydraulic truck crane. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Dimension — Overall Length | mm | 14770 |
| Dimension — Overall Width | mm | 2800 |
| Dimension — Overall Height | mm | 3890 |
| Dimension — Wheel Base | mm | 1470+4000+1350 |
| Dimension — Wheel Tread | mm | 2380/2380/2075/2075 |
| Weight — Travelling Weight | kg | 50000 |
| Weight — Axle Load | kg | 24000/26000 |
| Travelling — Max.Travelling Speed | km/h | 80 |
| Travelling — Min.Stable Travelling Speed | km/h | 3 |
| Turning — Min Diameter of Turning Circle | m | 24 |
| Turning — Min Diameter of Turning Circle of Boom Head | m | 29 |
| Turning — Minimum Ground Clearance | mm | 371 |
| Turning — Approach Angle | ° | 17 |
| Turning — Departure Angle | ° | 15.5 |
| Turning — Fuel Consumption Per Hundred Kilometers | L | 45 |
| Main Performance Parameters — Max.Rated Lifting Capacity | t | 80 |
| Main Performance Parameters — Min.Rated Range | m | 3 |
| Main Performance Parameters — Max. Lifting Moment of Basic Boom | kN·m | 3060 |
| Main Performance Parameters — Turning Radius of Platform Tail | mm | 4670 |
| Outriggers — Lengthways | m | 8.075 |
| Outriggers — Transverse | m | 7.9 |
| Max. Lifting Height — Basic Boom | m | 12.8 |
| Max. Lifting Height — Full-extend boom | m | 47.5 |
| Max. Lifting Height — Full-extend boom + jib | m | 64 |
| Lifting Speed — Main Hoisting Mechanism | s | 110 |
| Luffing Time — Full Extension Time | s | 140 |
| Outrigger--horizontal — Open Simultaneously--horizontal | s | 20 |
| Outrigger--horizontal — Close Simultaneously--horizontal | s | 20 |
| Outrigger--Vertical — Close Simultaneously | s | 50 |
Kinetic Parameter
| Item | Unit | Value |
|---|---|---|
| Engine Model | — | WP12.375NMC11.39-30 |
| Rated Power ((kw/(r/min))) | — | 276/1900 |
| Rated Torque ((N.m/(r/min))) | — | 1800/1000-1400 1900/1000-1400 |
Turning
| Item | Unit | Value |
|---|---|---|
| Max Gradeability ((％)) | — | 40 |
| Braking Length ((m)) | — | ≤10 |
