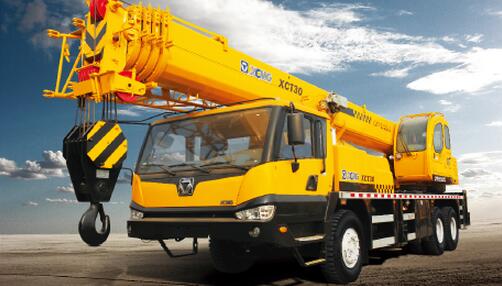

Hydraulic truck crane
XCT30E
DimensionsUnit Overall lengthMm12740Overall widthMm2500Overall heightMm3480Weight Dead weight in tr
Parameters
| Item | Unit | Value |
|---|---|---|
| Overall length | Mm | 12740 |
| Overall width | Mm | 2500 |
| Overall height | Mm | 3480 |
| Weight — Dead weight in travel state | Kg | 33490 |
| Weight — Front axle load | Kg | 7900 |
| Weight — Rear axle load | Kg | 25590 |
| Travel — Max.travel speed | Km/h | 80 |
| Travel — Min. turning diameter | M | 22 |
| Travel — Min. ground clearance | Mm | 290 |
| Travel — Fuel consumption of per 100km | L | ≈37 |
| Lifting performance — Max. total rated lifting load | T | 30 |
| Lifting performance — Min. rated working radius | M | 3 |
| Lifting performance — Turning radius at swing table tail | Mm | 3270 |
| Lifting performance — Base boom max. load moment | Kn.m | 1128 |
| Lifting performance — Base boom | M | 10.6 |
| Lifting performance — Full-extend boom | M | 41 |
| Lifting performance — Full-extend boom+Jib | m | 49.3 |
| Lifting performance — Outrigger longitudinal distance span | M | 5.65 |
| Lifting performance — Outrigger lateral distance span | M | 6.0/4.8 |
| Working speed — Boom elevating time | S | 68 |
| Working speed — Boom telescoping time | S | 165 |
| Working speed — Max. slewing speed | r/min | 2.5 |
| Working speed — Main winch max. speed(single line) | m/min | 120 |
| Working speed — Auxiliary winch max.speed(single line) | m/min | 120 |
Power
| Item | Unit | Value |
|---|---|---|
| Engine model | — | SC8DK280Q3 SC9DF300Q3 WD615.329 |
| Engine rated output (Kw(r/min)) | — | 206/2200 221/2200 213/2200 |
| Engine rated torque (N.m(r/min)) | — | 1112/1400 1250/1400 1160/1100-1600 |
Travel
| Item | Unit | Value |
|---|---|---|
| Approach angle (。) | — | 20 |
| Departure angle (。) | — | 16 |
| Max. gradeability (%) | — | ≥40 |
