Hydraulic truck crane
XCT20L4

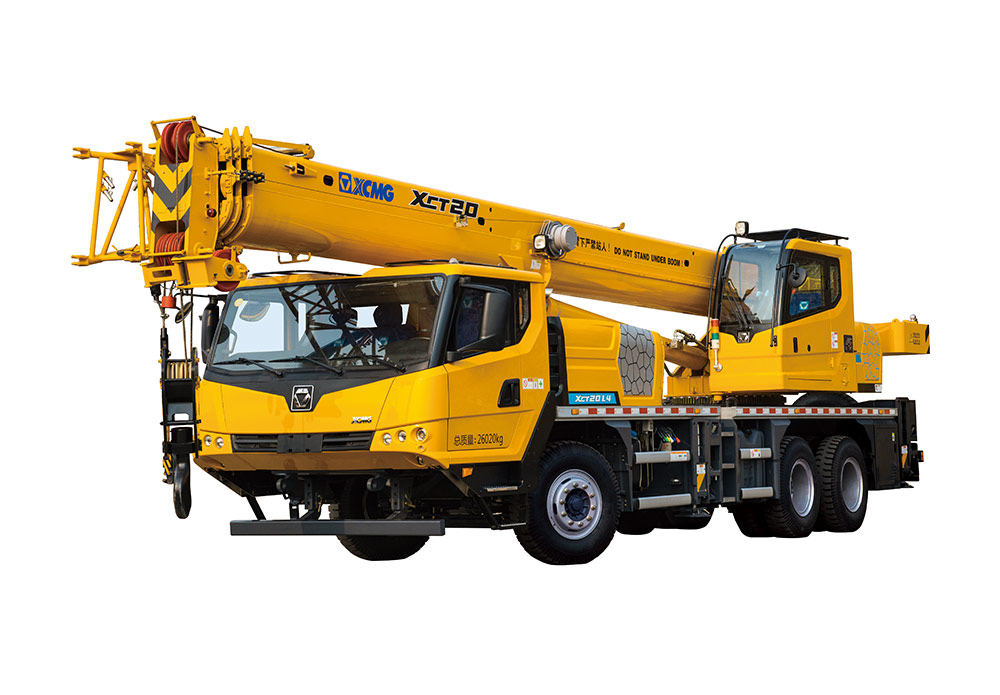

XCT20L4 — Hydraulic truck crane. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Dimension — Overall Length | mm | 12535 |
| Dimension — Overall Width | mm | 2500 |
| Dimension — Overall Height | mm | 3420 |
| Dimension — Wheel Base | mm | 4225+1350 |
| Dimension — Wheel Tread | mm | 2027 1834 |
| Weight — Travelling Weight | kg | 26020 |
| Weight — Axle Load | kg | 6450 19750 |
| Travelling — Max.Travelling Speed | km/h | 85/80 |
| Travelling — Min.Stable Travelling Speed | km/h | 2～5 |
| Turning — Min Diameter of Turning Circle | m | 20 |
| Turning — Min Diameter of Turning Circle of Boom Head | m | 24 |
| Turning — Minimum Ground Clearance | mm | 261 |
| Turning — Approach Angle | ° | 19 |
| Turning — Departure Angle | ° | 13 |
| Turning — Fuel Consumption Per Hundred Kilometers | L | 30 |
| Main Performance Parameters — Max.Rated Lifting Capacity | t | 20 |
| Main Performance Parameters — Min.Rated Range | m | 3 |
| Main Performance Parameters — Max. Lifting Moment of Basic Boom | kN·m | 957 |
| Main Performance Parameters — Turning Radius of Platform Tail | mm | 3425 |
| Outriggers — Lengthways | m | 5.23 |
| Outriggers — Transverse | m | 6.16 |
| Max. Lifting Height — Basic Boom | m | 10.9 |
| Max. Lifting Height — Full-extend boom | m | 34.5 |
| Max. Lifting Height — Full-extend boom + jib | m | 42.8 |
| Boom Length — Basic Boom | m | 10.6 |
| Boom Length — Full-extend boom | m | 34 |
| Working Speed — Max Rotating Speed | r/min | 3 |
| Lifting Speed — Main Hoisting Mechanism | s | 135 |
| Boom Extend-retract Time — Full-extend | s | 50 |
| Luffing Time — Full Extension Time | s | 35 |
| Outrigger--horizontal — Open Simultaneously--horizontal | s | 25 |
| Outrigger--horizontal — Close Simultaneously--horizontal | s | 23 |
| Outrigger--Vertical — Open Simultaneously | s | 25 |
| Outrigger--Vertical — Close Simultaneously | s | 24 |
Kinetic Parameter
| Item | Unit | Value |
|---|---|---|
| Engine Model | — | SC7H260Q4/WP7.270.E434 |
| Rated Power ((kw/(r/min))) | — | 192/2300 199/2100 |
| Rated Torque ((N.m/(r/min))) | — | 1000/1200-1600 1160/1200-1500 |
Turning
| Item | Unit | Value |
|---|---|---|
| Max Gradeability ((％)) | — | 45/50 |
| Braking Length ((m)) | — | ≤10 |
Boom Length
| Item | Unit | Value |
|---|---|---|
| Full-extend boom + jib | — | 42.3 |
Lifting Speed
| Item | Unit | Value |
|---|---|---|
| Auxiliary Hoisting Mechanism | — | 135 |
