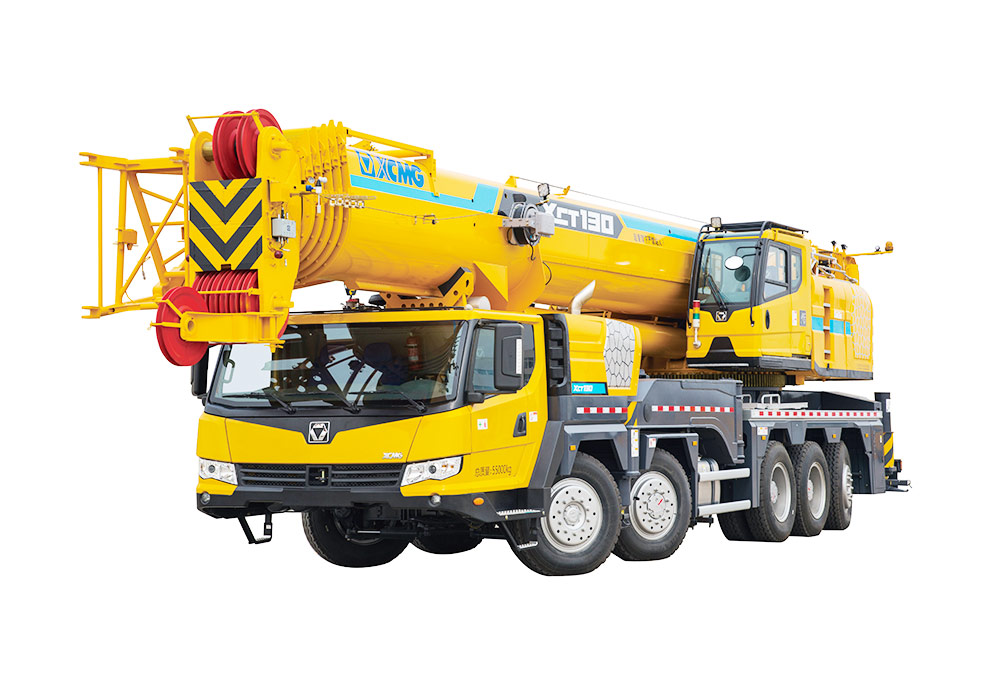

Hydraulic truck crane

XCT130

XCT130 — Hydraulic truck crane. Professional construction equipment by CANMAX.

Parameters

Item	Unit	Value
Dimension — Overall Length	mm	15195
Dimension — Overall Width	mm	3000
Dimension — Overall Height	mm	3970
Dimension — Wheel Tread	mm	2449/2449/2315/2315/2449
Weight — Travelling Weight	kg	54990
Weight — Axle Load	kg	20000/26000/9000
Travelling — Max.Travelling Speed	km/h	80
Travelling — Min.Stable Travelling Speed	km/h	2.5～3
Turning — Min Diameter of Turning Circle	m	23
Turning — Minimum Ground Clearance	mm	312
Turning — Approach Angle	°	18
Turning — Departure Angle	°	13
Turning — Fuel Consumption Per Hundred Kilometers	L	70/65
Main Performance Parameters — Max.Rated Lifting Capacity	t	130
Main Performance Parameters — Min.Rated Range	m	3
Main Performance Parameters — Max. Lifting Moment of Basic Boom	kN·m	5116
Main Performance Parameters — Turning Radius of Platform Tail	mm	4900
Max. Lifting Height — Basic Boom	m	13.4
Max. Lifting Height — Full-extend boom	m	60.7
Max. Lifting Height — Full-extend boom + jib	m	85.3
Boom Length — Basic Boom	m	13.1
Boom Length — Full-extend boom	m	61
Working Speed — Max Rotating Speed	r/min	2
Lifting Speed — Main Hoisting Mechanism	s	135
Boom Extend-retract Time — Full-extend	s	460
Luffing Time — Full Extension Time	s	65
Outrigger--horizontal — Open Simultaneously--horizontal	s	25
Outrigger--horizontal — Close Simultaneously--horizontal	s	25
Outrigger--Vertical — Open Simultaneously	s	50

Item	Unit	Value
Max Gradeability ((％))	—	45
Braking Length ((m))	—	≤10

Item	Unit	Value
Full-extend boom + jib	—	89

Item	Unit	Value
Auxiliary Hoisting Mechanism	—	135
