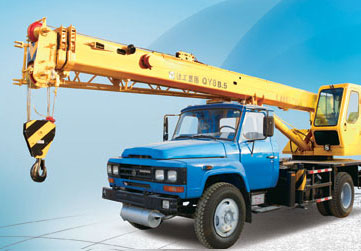

Hydraulic truck crane

QY8B.5

More excellent performance • The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage. • Apply the mature jib technique which integrates plug-in boom head, emb

Parameters

Item Unit Value
Dimension (Unit) QY8B.5
Overall length mm 9450
Overall width mm 2400
Overall height mm 3180

Weight

Item Unit Value
Total weight in travel kg 10490
Front axle load kg 2800
Rear axle load kg 7690

Power

Item Unit Value
Engine model YC4E140-30
Engine rated power (kW/(r/min)) 105/2500
Engine rated torque (N.m/(r/min)) 500/1600

Travel

Item Unit Value
Max. travel speed km/h 75
Min. turning diameter mm 16000
Min. ground clearance mm 260
Approach angle ° 29
Departure angle ° 11
Max. grade ability % 28
Fuel consumption for 100km L 25.5

Main performance

Item Unit Value
Max. rated total lifting capacity t 8
Min. rated working radius m 3
Turning radius at turntable tail m 2.254
Max. lifting torque KN.m 245
Base boom 8.2
Fully extended boom 19
Fully extended boom+jib m 25.3
Longitudinal outrigger span m 3.825
Lateral outrigger span m 4.18

Working speed

Item Unit Value
Boom luffing time (s) 28
Boom full extension time (s) 31
Max. swing speed r/min 2.8
Main winch single-pump/dual-pump converging (single rope) m/min 53/110
