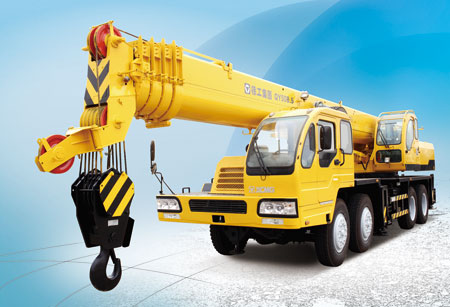

Products / Lifting / Hydraulic truck crane / QY50B.5 Parameters Item Unit Value Dimension (Unit) — QY50B.5 Overall length mm 13890 Overall width mm 2800 Overall height mm 3440
Weight Item Unit Value Total weight in travel kg 42000 Load of axle 1, 2 kg 18000 Load of axle 3, 4 kg 26000
Power Item Unit Value Engine model — WD615.338 Engine rated power (kW/(r/min)) — 247/2200 Engine rated torque (N.m/(r/min)) — 1350/1400
Travel Item Unit Value Max. travel speed km/h 80 Min. turning diameter m 24 Min. ground clearance mm 327 Approach angle ° 18 Departure angle ° 11 Max. grade ability % 35 Fuel consumption for 100km L 40
Main performance Item Unit Value Max. rated total lifting capacity t 50 Min. rated working radius m 3 Turning radius at turntable tail m 3.71 Max. lifting torque kN.m 1800 Base boom — 11.56 Fully extended boom — 42.58 Fully extended boom+ jib m 55.8 Longitudinal outrigger span m 5.93 Lateral outrigger span m 6.9
Working speed Item Unit Value Boom luffing time (s) — 88 Boom full extension time (s) — 180 Max. swing speed r/min 2 Max. speed of main winch (single rope) m/min 110 Max. speed of aux. winch (single rope) m/min 110
