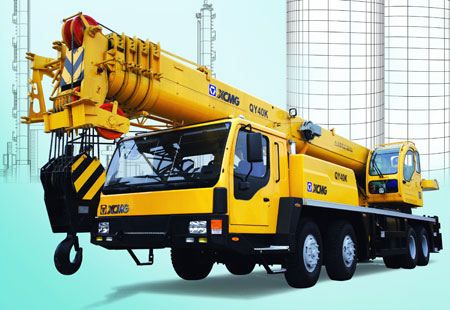

Products / Lifting / Hydraulic truck crane / QY40K Parameters Item Unit Value Dimension (Unit) — QY40K Overall length mm 13050 Overall width (mm) — ≤2800 Overall height mm 3430
Weight Item Unit Value Total weight in travel kg 40400 Front axle load kg 14500 Rear axle load kg 25900
Power Item Unit Value Engine model — WD615.334 Engine rated power (kW/(r/min)) — 247 / 2200 Engine rated torque (N.m/(r/min)) — 1350 / 1400
Travel Item Unit Value Max. travel speed km/h 75 Min. turning diameter (m) — ≤24 Min. ground clearance mm 285 Approach angle ° 16 Departure angle ° 11 Max. grade ability % 46 Fuel consumption for 100km L 46
Main performance Item Unit Value Max. rated total lifting capacity t 40 Min. rated working radius mm 3000 Turning radius at turntable tail m 3.482 Max. lifting torque kN.m 1400 Base boom — 10.7 Fully extended boom — 40.1 Fully extended boom+ jib m 55.1 Longitudinal outrigger span m 5.65 Lateral outrigger span m 6.6
Working speed Item Unit Value Boom luffing time (s) — ≤88 Boom full extension time (s) — ≤180 Max. swing speed (r/min) — ≥2.0 Max. speed of main winch (single rope) (m/min) — ≥110 Max. speed of aux. winch (single rope) (m/min) — ≥110
