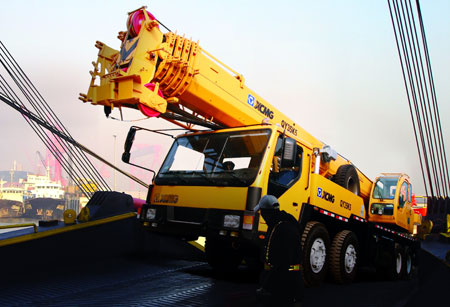

Products / Lifting / Hydraulic truck crane / QY35K5 Parameters Item Unit Value Dimension (Unit) — QY35K5 Overall length mm 12620 Overall width mm 2500 Overall height mm 3350
Weight Item Unit Value Total weight in travel kg 36930 Front axle load kg 12330 Rear axle load kg 24600
Power Item Unit Value Engine model — SC9DK320Q3 Engine rated power (kW/(r/min)) — 235 / 2200 Engine rated torque (N.m/(r/min)) — 1250 / 1400
Travel Item Unit Value Max. travel speed km/h 75 Min. turning diameter m 19.5 Min. ground clearance mm 260 Approach angle ° 17 Departure angle ° 15.7 Max. grade ability % 40 Fuel consumption for 100km L 30
Main performance Item Unit Value Max. rated total lifting capacity t 35 Min. rated working radius mm 3000 Turning radius at turntable tail m 3.055 Max. lifting torque kN.m 1200 Base boom — 10.5 Fully extended boom — 39.6 Fully extended boom+ jib m 54.6 Longitudinal outrigger span m 5.35 Lateral outrigger span m 6
Working speed Item Unit Value Boom luffing time (s) — 68 Boom full extension time (s) — ≤155 Max. swing speed (r/min) — ≥2.5 Max. speed of main winch (single rope) (m/min) — ≥130 Max. speed of aux. winch (single rope) (m/min) — ≥130
