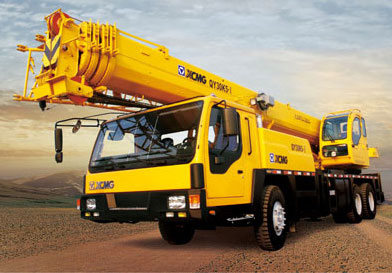

Products / Lifting / Hydraulic truck crane / QY30K5-I Parameters Item Unit Value Dimension (Unit) — QY30K5-I Overall length mm 12570 Overall width mm 2500 Overall height mm 3390
Weight Item Unit Value Total weight in travel kg 32400 Front axle load kg 7000 Rear axle load kg 25400
Power Item Unit Value Engine model — SC8DK280Q3 Engine rated power (kW/(r/min)) — 206/2200 Engine rated torque (N.m/(r/min)) — 1112/1400
Travel Item Unit Value Max. travel speed km/h 80 Min. turning diameter m 22 Min. ground clearance mm 291 Approach angle ° 19 Departure angle ° 13 Max. grade ability % 40 Fuel consumption for 100km L 40
Main performance Item Unit Value Max. rated total lifting capacity t 30 Min. rated working radius mm 3000 Turning radius at turntable tail m 3.065 Max. lifting torque kN.m 1025 Base boom — 10.6 Fully extended boom — 40.4 Fully extended boom+ jib m 48.7 Longitudinal outrigger span m 5.85 Lateral outrigger span m 6
Working speed Item Unit Value Boom luffing time (s) — 68 Boom full extension time (s) — 150 Max. swing speed r/min 2.5 Max. speed of main winch (single rope) (no load) m/min 120 Max. speed of aux. winch (single rope) (no load) m/min 120
