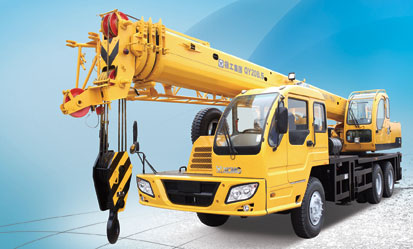

Products / Lifting / Hydraulic truck crane / QY20B.5II Parameters Item Unit Value Dimension (Unit) — QY20B.5 Overall length mm 12400 Overall width mm 2500 Overall height mm 3300
Weight Item Unit Value Total weight in travel kg 26020 Front axle load kg 6900 Rear axle load kg 19120
Power Item Unit Value Engine model — SC8DK260Q3, WD615.327 Engine rated power (kW/(r/min)) — 192/2200 198/2200 Engine rated torque (N.m/(r/min)) — 1100/1400 1150/1400
Travel Item Unit Value Max. travel speed km/h 75 Min. turning diameter m 20 Min. ground clearance mm 270 Approach angle ° 21 Departure angle ° 11 Max. grade ability % 35 Fuel consumption for 100km L ≈35
Main performance Item Unit Value Max. rated total lifting capacity t 20 Min. rated working radius mm 3000 Turning radius at turntable tail m 3.385 Max. lifting torque kN.m 860 Base boom — 10.06 Fully extended boom — 32.76 Fully extended boom+jib m 42.12 Longitudinal outrigger span m 4.97 Lateral outrigger span m 5.4
Working speed Item Unit Value Boom luffing time (s) — 75 Boom full extension time (s) — 95 Max. swing speed r/min 3 Max. speed of main winch (single rope) m/min 100 Max. speed of aux. winch (single rope) m/min 100
