Hydraulic truck crane
QY16B.5II

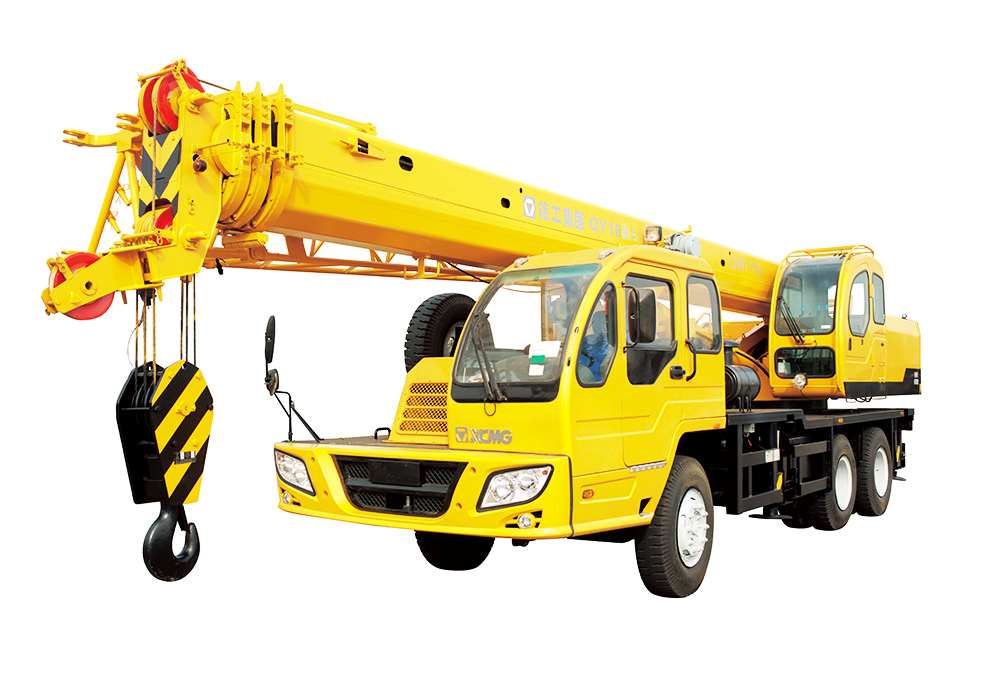

QY16B.5II — Hydraulic truck crane. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Dimension — Overall Length | mm | 12210 |
| Dimension — Overall Width | mm | 2500 |
| Dimension — Overall Height | mm | 3250 |
| Dimension — Wheel Base | mm | 4025+1350 |
| Dimension — Wheel Tread | mm | 2090 1834 |
| Weight — Travelling Weight | kg | 24000 |
| Weight — Axle Load | kg | 6400 |
| Travelling — Max.Travelling Speed | km/h | 70 |
| Travelling — Min.Stable Travelling Speed | km/h | 3～4 |
| Turning — Min Diameter of Turning Circle | m | 20 |
| Turning — Min Diameter of Turning Circle of Boom Head | m | 23 |
| Turning — Minimum Ground Clearance | mm | 270 |
| Turning — Approach Angle | ° | 21 |
| Turning — Departure Angle | ° | 12 |
| Turning — Fuel Consumption Per Hundred Kilometers | L | 35 |
| Main Performance Parameters — Max.Rated Lifting Capacity | t | 16 |
| Main Performance Parameters — Min.Rated Range | m | 3 |
| Main Performance Parameters — Max. Lifting Moment of Basic Boom | kN·m | 720 |
| Main Performance Parameters — Turning Radius of Platform Tail | mm | 3240 |
| Outriggers — Lengthways | m | 4.6 |
| Outriggers — Transverse | m | 5.4 |
| Max. Lifting Height — Basic Boom | m | 9.9 |
| Max. Lifting Height — Full-extend boom | m | 31.1 |
| Max. Lifting Height — Full-extend boom + jib | m | 39.4 |
| Boom Length — Basic Boom | m | 31 |
| Boom Length — Full-extend boom | m | 31+8.15 |
| Lifting Speed — Main Hoisting Mechanism | s | 54/125 |
| Outrigger--horizontal — Open Simultaneously--horizontal | s | 26 |
| Outrigger--Vertical — Open Simultaneously | s | 30 |
Kinetic Parameter
| Item | Unit | Value |
|---|---|---|
| Engine Model | — | SC8DK230/Q3YC6J220-30/SC7H230Q3 |
| Rated Power ((kw/(r/min))) | — | 170/2200 162/2300 170/2200 |
| Rated Torque ((N.m/(r/min))) | — | 830/1400 850/1400-1600 900/1400 |
Turning
| Item | Unit | Value |
|---|---|---|
| Max Gradeability ((％)) | — | ≥24 |
| Braking Length ((m)) | — | ≤10 |
