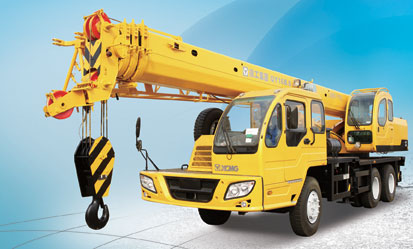

Products / Lifting / Hydraulic truck crane / QY16B.5 Parameters Item Unit Value Dimension (Unit) — QY16B.5 Overall length mm 12110 Overall width mm 2500 Overall height mm 3250
Weight Item Unit Value Total weight in travel kg 24000 Front axle load kg 6400 Rear axle load kg 17600
Power Item Unit Value Engine model — WD415.21SC8DK230Q3 Engine rated power (kW/(r/min)) — 155/2200、170/2200 Engine rated torque (N.m/(r/min)) — 820/1400830/1400
Travel Item Unit Value Max. travel speed km/h 75 Min. turning diameter mm 20000 Min. ground clearance mm 270 Approach angle ° 21 Departure angle ° 10 Max. grade ability % 24 Fuel consumption for 100km (L) — ≤35
Main performance Item Unit Value Max. rated total lifting capacity t 16 Min. rated working radius m 3 Turning radius at turntable tail m 3.14 Max. lifting torque KN.m 720 Base boom — 9.9 Fully extended boom — 31.1 Fully extended boom＋jib m 39.4 Longitudinal outrigger span m 4.6 Lateral outrigger span m 5.4
Working speed Item Unit Value Boom luffing time (s) — 60 Boom full extension time (s) — 95 Max. swing speed r/min 2.5 Main winch full load/no load (single rope) m/min 54/100 Aux. winch full load/no load (single rope) m/min 54/100
