Hydraulic truck crane

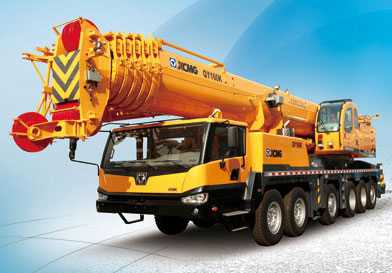

QY160K

QY160K is the truck crane with the largest tonnage in the world. The boom length and lifting capacity is a great breakthrough in the 6-axle truck crane. The full extension length of the boom is 62m, and can be equipped with 28m vice boom. The maximum counterweight is 50t. The out

Parameters

Item Unit Value
Dimension (Unit) QY160K

Weight

Item Unit Value
Total weight in travel kg 54900

Power

Item Unit Value
Engine model OM460LA.E3A/1
Engine rated power (kW/(r/min)) 360/1800

Travel

Item Unit Value
Max. travel speed km/h 80
Min. turning diameter m 26
Min. ground clearance mm 300
Approach angle ° 20
Departure angle ° 14
Max. grade ability % 40
Fuel consumption for 100km L 75

Main performance

Item Unit Value
Max. rated total lifting capacity t 160
Max. lifting torque kN.m 5253
Fully extended boom 61.4
Fully extended boom+ jib m 88.6
Longitudinal outrigger span m 7.8
Lateral outrigger span m 8

Working speed

Item Unit Value
Max. swing speed r/min 1.8
Max. speed of main winch (single rope) (no load) m/min 110
