Hydraulic truck crane

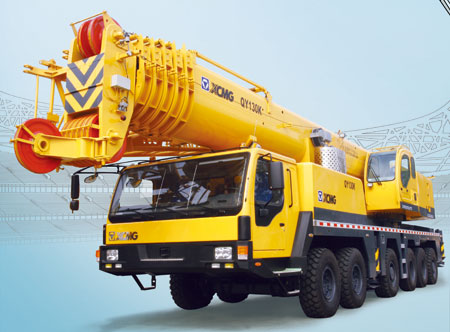

QY130K
ClassificatoryItemUnitParameterOutline dimensionOverall lengthmm14950Overall widthmm3000Overall heig
Parameters
| Item | Unit | Value |
|---|---|---|
| Outline dimension | mm | Overall length |
| Overall width | mm | 3000 |
| Overall height | mm | 3950 |
| Axle base | mm | Axle 1, Axle 2 |
| Axle 2, Axle 3 | mm | 2420 |
| Axle 3, Axle 4 | mm | 1875 |
| Axle 4, Axle 5 | mm | 1350 |
| Axle 5, Axle 6 | mm | 1400 |
| Wheel base | mm | 2610/2307 |
| Mass | kg | Total mass in travel state |
| Axle load | kg | Axle 1, Axle 2 |
| Axle 3, Axle 4 | kg | 9200/12700 |
| Axle 5, Axle 6 | kg | 12700/9800 |
| Power (Crane superstructure engine) | — | Rated power |
| Rated torque (N.m/(r/min)) | — | 854/1400 |
| Rated speed | r/min | 2100 |
| Crane carrier engine (Rated power) | — | kw/(r/min) |
| Rated torque (N.m/(r/min)) | — | 2400/1080 |
| Rated speed | r/min | 2000 |
| Travel performance (Travel speed) | — | Max. travel speed |
| Min. stable travel speed | km/h | 2.1 |
| Min. turning diameter | m | 24 |
| Min. ground clearance | mm | 275 |
| Approach angle | ° | 23 |
| Departure angle | ° | 14 |
| Braking distance (at 30km/h) (m) | — | ≤ 10 |
| Max. grade-ability (％) | — | 40 |
| Fuel consumption for 100km | L | 80 |
