Parameters
| Item | Unit | Value |
|---|---|---|

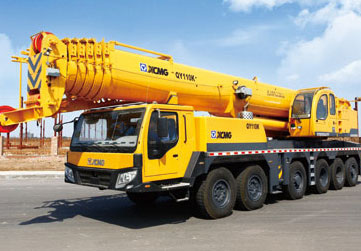

| Dimension (Unit) | — | QY110K |
| Overall length | mm | 14800/15270 |
| Overall width | mm | 3000 |
| Overall height | mm | 3920 |
Weight
| Item | Unit | Value |
|---|---|---|
| Total weight in travel | kg | 54900/58000 |
| Front axle load (axle 1, 2, 3) | kg | 7500/7500/8300(9000) |
| Rear axle load (axle 4, 5) | kg | 12000(13000)12000(13000)/7600(8000) |
Power
| Item | Unit | Value |
|---|---|---|
| Engine model | — | OM906LA/OM460LA |
| Engine rated power (kW/(r/min)) | — | 162/2100 360/1800 |
| Engine rated torque (N.m/(r/min)) | — | 1054/1500 2200/1300 |
Travel
| Item | Unit | Value |
|---|---|---|
| Max. travel speed | km/h | 80 |
| Min. turning diameter | m | 24 |
| Min. ground clearance | mm | 300 |
| Approach angle | ° | 20 |
| Departure angle | ° | 14 |
| Max. grade ability | % | 40 |
| Fuel consumption for 100km | L | 75 |
Main performance
| Item | Unit | Value |
|---|---|---|
| Max. rated total lifting capacity | t | 110 |
| Min. rated working radius | m | 3 |
| Turning radius at turntable tail | m | 4.51 |
| Max. lifting torque | kN.m | 4233 |
| Base boom | — | 12.8 |
| Fully extended boom | — | 58 |
| Fully extended boom+ jib | m | 76.1 |
| Longitudinal outrigger span | m | 7.56 |
| Lateral outrigger span | m | 7.6(5.2) |
Working speed
| Item | Unit | Value |
|---|---|---|
| Boom luffing time (s) | — | 60 |
| Boom full extension time (s) | — | 600 |
| Max. swing speed | r/min | 1.9 |
| Max. speed of main winch (single rope) (no load) (m/min) | — | ≥105 |
| Max. speed of aux. winch (single rope) (no load) (m/min) | — | ≥105 |
