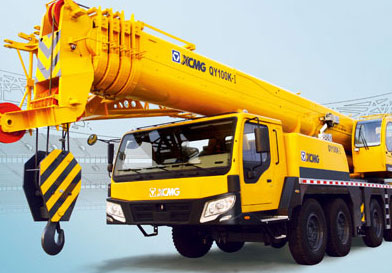

Products / Lifting / Hydraulic truck crane / QY100K-I(Weichai) Parameters Item Unit Value Dimension (Unit) — QY100K-I Overall length, width, height mm 15600×3000×3850
Weight Item Unit Value Total weight in travel kg 54900 58000
Axle load Item Unit Value Axle 1 kg 7500 7500 Axle 2 kg 7500 7500 Axle 3 kg 8300 10000 Axle 4 kg 12000 12500 Axle 5 kg 12000 12500 Axle 6 kg 7600 8000
Power Item Unit Value Engine rated power (kW/(r/min)) — 360/1800 (306/1900) Engine rated torque (N.m/(r/min)) — 2200/1300 (2010/1200) Engine rated speed r/min 1800 (1900) Min. ground clearance mm 310
Travel Item Unit Value Approach angle ° 20 Departure angle ° 14 Braking distance (at 30km/h) (m) — ≤10 Max. grade ability % 40 Min. turning diameter m 24 Fuel consumption for 100km L 70
Main performance Item Unit Value Max. rated total lifting capacity m 100 Min. rated working radius — 3
Turning radius at turntable tail Item Unit Value Counterweight mm 4200 Aux. winch mm 4590 Max. lifting torque — 3450 Base boom kN.m 3450(4m×88t) Fully extended boom kN.m 1950(24m×7.1t) Fully extended boom＋ jib kN.m 1230(19.2m×6t)
Outrigger span (full extension) Item Unit Value Longitudinal m 7.56 Lateral m 7.6
Lifting height Item Unit Value Boom length m 13.5
Working speed Item Unit Value Jib setting angle ° 0、15、30 Boom luffing time (s) — 75
Boom telescoping time Item Unit Value Full extension (s) — 160 Max. swing speed r/min 2
Outrigger extension/retraction time Item Unit Value Outrigger beam in extension/retraction (s) — 25/15 Outrigger jack in extension/retraction (s) — 45/25
Lifting speed (single rope, layer 4) Item Unit Value Main winch m/min 105
