Crawler crane

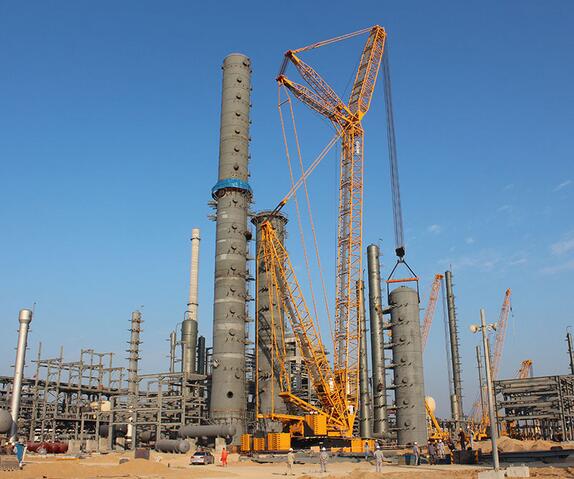

XGC800
ItemsUnitDataMax lifting capacityt800Standard modeHeavy boomM24-90Light boomm36-108Tower jibM30-102S
Parameters
| Item | Unit | Value |
|---|---|---|
| Max lifting capacity | t | 800 |
| Standard mode | M | Heavy boom |
| Light boom | m | 36-108 |
| Tower jib | M | 30-102 |
| SL mode | M | Heavy boom |
| Light boom | M | 36-150 |
| Tower jib | M | 30-102 |
| Special jib length | M | 12 |
| Winch max single line speed | m/min | 142 |
| Boom luffing gear max. single line speed | m/min | 2×55 |
| Wire rope diam | T | 17 |
| Max rope single line pull | Mm | 28 |
| Slewing speed | r/min | 0.6 |
| Travel speed | Km/h | 1.0 |
| Mean ground pressure | mpa | 0.17 |
| Engine output power | kw | 447 |
| Total vehicle weight(24m heavy boom, 500t capacity hook block) | t | 635 |
| Max. weight of single unit in travel configuration | T | 53.68 |
| Max. dimension of single unit(tumtable) in travel configuration(L×W×H) | m | 11.8×3.44×2.685 |
