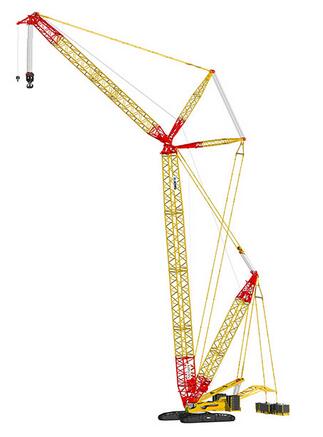

Crawler crane
XGC650(CE)
1. Super-lifting radius stepless regulation device may provide ultra-strong lifting performance, improving site adaptability of products. 2. Electrical proportional operating system adopts PLC integrated control, which fully reflects people oriented design concept, realizes autom
Parameters
| Item | Unit | Value |
|---|---|---|
| Max. lifting capacity | t | 650 |
| Length/ max. lifting capacity of light-duty main boom | m/t | 66-108/330 |
| Length/ max. lifting capacity of wind power auxiliary boom (optional) | m/t | 78-102+12/165 |
| Length/ max. lifting capacity of tower-type auxiliary boom | m/t | 30-66+24-84/230 |
| Length/ max. lifting capacity of dedicated auxiliary boom | m/t | 42-108+12/340 |
| Max. single rope lifting speed | m/min | 130 |
| Max. single rope speed of main boom luffing | m/min | 56×2 |
| Max. single rope speed of tower boom luffing | m/min | 100 |
| Max. single rope speed of super-lifting luffing | m/min | 110 |
| Slewing speed | r/min | 0.7 |
| Traveling speed | km/h | 0.8 |
| Average ground pressure | MPa | 0.146 |
| Engine power | kw | 447 |
| Overall weight (24m heavy-duty main boom, 700t hook) | t | 496 |
| Max. weight of single piece (main machine) in transport state | t | 65 |
| Max. dimensions of single piece (main machine) in transport state (L× W× H) | m | 12×3.3×3.4 |
