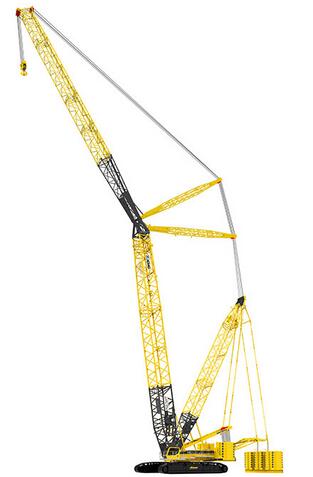

Crawler crane
XGC500
ItemsMax lifting capacityStandard modeHeavy boomUnit450Light boomT230Tower jibT226.4SL modeHeavy boo
Parameters
Items
| Item | Unit | Value |
|---|---|---|
| Max lifting capacity (Standard mode) | — | Heavy boom |
| Light boom | T | 230 |
| Tower jib | T | 226.4 |
| Light boom | T | 230 |
| Tower jib | T | 230 |
| Boom length | M | 24-96 |
| Boom luffing angle (。) | — | -88 |
| Tower jib length | M | 24-84 |
| Winch max single line speed(no load, at 6thlayer) | m/min | 130 |
| Boom luffing gear max. single line speed(no load, at 1st layer) | m/min | 2×53 |
| Wire rope diam | Mm | 28 |
| Max rope single line pull | T | 17.2 |
| Slewing speed | r/min | 1 |
| Travel speed | Km/h | 0.73 |
| Grade ability | — | 30% |
| Mean ground pressure | Mpa | 0.18 |
| Engine output power | Kw | 360 |
| Total vehicle weight(24m heavy boom, 500t capacity hook block) | T | 375 |
| Max. weight of single unit in travel configuration | t | 50 |
| Max. dimension of single unit(tumtable) in travel configuration(L×W×H) | m | 11.5×3.4×3.4 |
