Crawler crane

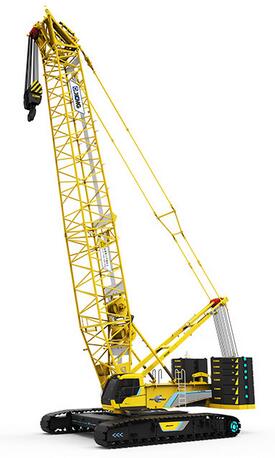

XGC260(CE)
1. Excellent Lifting Capacity Maximum rated lifting capacity of XGC260E crawler crane is 260t and maximum lifting torque is 145t×10m=1450t·m. It is equipped with six working conditions including main boom, single pulley on main boom end, light-duty main boom, tower-type auxiliary
Parameters
| Item | Unit | Value |
|---|---|---|
| Max. rated lifting capacity (t) | — | Working condition of main boom |
| Working condition of light-duty main boom | t.m | 1156 |
| Working condition of tower-type auxiliary boom | t.m | 1387.2 |
| Working condition of stationary auxiliary boom | t.m | 1414 |
| Working condition of shield (dual-hook compound hoisting) | t | 150 |
| Working condition of single pulley on boom end | t.m | 834 |
| Max. lifting torque (t.m) | — | Working condition of main boom |
| Dimension parameters (m) | — | Length of main boom |
| Length of light-duty main boom | — | 67.5～100.5 |
| Luffing angle of main boom | ° | -3～85 |
| Length of tower-type auxiliary boom | — | 24～66 |
| Luffing angle of tower-type auxiliary boom | ° | 20～75 |
| Length of stationary auxiliary boom | — | 9～36 |
| Angle between main boom and stationary auxiliary boom | ° | 10、30 |
| Single pulley on boom end | m | 1.8 |
| Speed parameter (m/min) | — | Max. single rope speed of hoisting mechanism |
| Max. single rope speed of main boom luffing gear | m/min | 2×42 |
| Max. single rope speed of tower boom luffing gear | m/min | 129 |
| Max. slewing speed | rpm | 1.1 |
| Max. traveling speed | km/h | 1.1 |
| Rated engine power/ speed | kW/rpm | 242/1800 |
| Emission standard | — | Euro III |
| Overall weight (on the basis of 260t hook, HB24 and 80t slewing table counterweight) | t | 239 |
| Average ground pressure | MPa | 0.116 |
| Gradeability | — | 30% |
| Vehicle body counterweight | — | 30 |
| Slewing table counterweight (optional, equipped with separately used load list) (t) | — | Any of three options- 80, 90 and 100 |
| Max. mass of single piece in transport state | t | 41.7 |
| Max. size of single piece (slewing table) in transport state (L × W × H) | m | 13.2×3.0×3.2 |
