Crawler crane

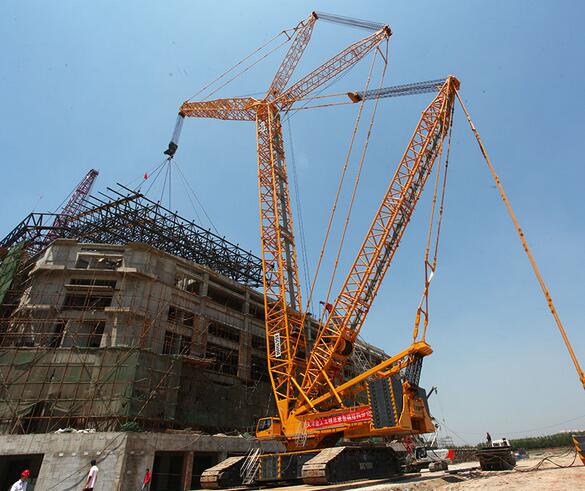

XGC15000
• XGC15000 crawler crane is a high-end product developed by our company to meet the hoisting requirement of the large-scale constructions such as coal chemical industry, nuclear power, petrifaction, metallurgy, etc., and participate in the international competition. • Draw advanc
Parameters
| Item | Unit | Value |
|---|---|---|
| Max. lifting capacity | t | 1000 |
| Light boom length | m | 48～114 |
| Tower jib length | m | 30-108 |
| Special jib length | m | 18 |
| Max. single line lifting speed | m/min | 130 |
| Max. single line speed of boom luffing | m/min | 53×2 |
| Max. single line speed of tower boom luffing | m/min | 125 |
| Max. single line speed of super-lift luffing | m/min | 130 |
| Swing speed | r/min | 0.9 |
| Travel speed | km/h | 0.8 |
| Average ground pressure | MPa | 0.156 |
| Gradeability | % | 30 |
| Engine power | kW | 641 |
| Overall weight(30m heavy boom、1000t hook) | t | 850 |
| Max. single unit weight for transportation | t | 59 |
| Max. single unit dimensions for transportation (L×W×H) | m | 5.9×3.4×3.12 |
