Crawler crane

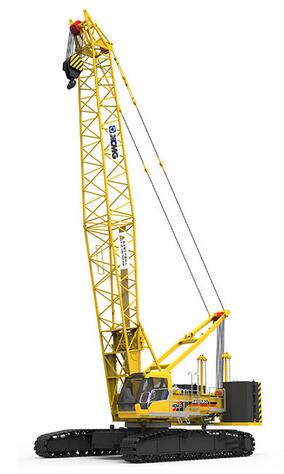

XGC130(CE)
1.High lifting performance, wide application range 1)Boom max. lifting capacity/radius 135t/4.6m, boom max. load moment 722tm. 2)Fixed jib max. lifting capacity 20t. 1.2.Easy transport 1)Basic machine max. transport weight only 36.2t, max. transport width only 3m. 2)Transport wit
Parameters
| Item | Unit | Value |
|---|---|---|
| Max. rated lifting capacity | t | Base boom |
| Fixed jib | t | 20 |
| Max. load moment | t.m | 722 |
| Boom length | m | 16～76 |
| Boo elevating angle | ° | Boom working condition |
| Fixed jib working condition | ° | 30～80 |
| Angle between fixed jib and boom | ° | 15°, 30° |
| Fixed jib length | m | 13～31 |
| Main hoist winch max. single line speed (no load, at 5th layer) | m/min | 120 |
| Aux. hoist winch max. single line speed (no load, at 4th layer) | m/min | 112 |
| Main luffing winch max. single line speed (no load, at 5th layer) | m/min | 2×45 |
| Max. slewing speed | r/min | 1.5 |
| Max. travel speed (high speed / low speed) | km/h | 1.3 / 0.4 |
| Grade-ability | % | 30 |
| Mean ground pressure | MPa | 0.089 |
| Engine output power | kW | 206 |
| Total vehicle mass (main hook block, full counterweight, 16m boom) | t | 122 |
| Max. mass of single unit in transport state | t | 37 |
| Max. dimension of single unit in transport state (L×W×H) | m | 11.0×3.0×3.3 |
| Working condition (Boom combination) | — | Max. lifting height (m) |
| Boom | — | 77 |
| Fixed jib (Boom 37～64m) | — | 93 |
jib 13～31m
| Item | Unit | Value |
|---|---|---|
| Single top (Boom head) | — | Increased 1.5m |
