Crawler crane

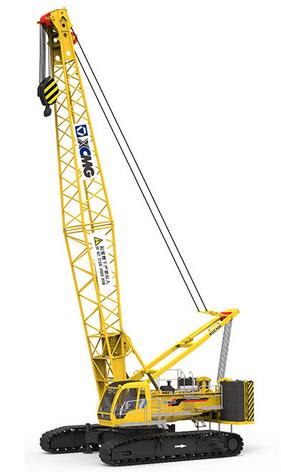

XGC100(CE)
1. Convenient Transportation 1) Maximum transportation weight of main machine only is 32.5t and maximum transportation width only is 3m. 2) It is unnecessary to dismantle mast and hoist 2. Equipped with Safe and Convenient Full-self Dismantling/Installation System 1) Dismantle an
Parameters
| Item | Unit | Value |
|---|---|---|
| Max. rated lifting capacity | t | Basic-form main boom |
| Stationary auxiliary boom | t | 15.6 |
| Max. Lifting Torque | t.m | 575 |
| Length of Main Boom | m | 19～73 |
| Luffing Angle of Main Boom | ° | Working Condition of Main Boom |
| Working Condition of Stationary Auxiliary Boom | — | 30～ 81 |
| Length of Stationary Auxiliary Boom | m | 13～25 |
| Max. Single Rope Speed of Hoisting Mechanism (Non-load, Fourth Layer) | m/min | 110 |
| Max. Single Rope Speed of Main Boom Luffing Mechanism (First Layer) | m/min | 34 |
| Max. Slewing Speed | r/min | 1.4 |
| Max. Traveling Speed | km/h | 1.3 |
| Gradeability | % | 30 |
| Average Ground Pressure | MPa | 0.087 |
| Engine Power | kW | 206 |
| Overall Weight (Main Hook, Full Counterweight, 19m Boom) | t | 104.5 |
| Max. Mass of Single Piece in Transport State | t | 32.5 |
| Max. Size of Single Piece in Transport State (L × W × H) | m | 10.5×3.0×3.35 |
