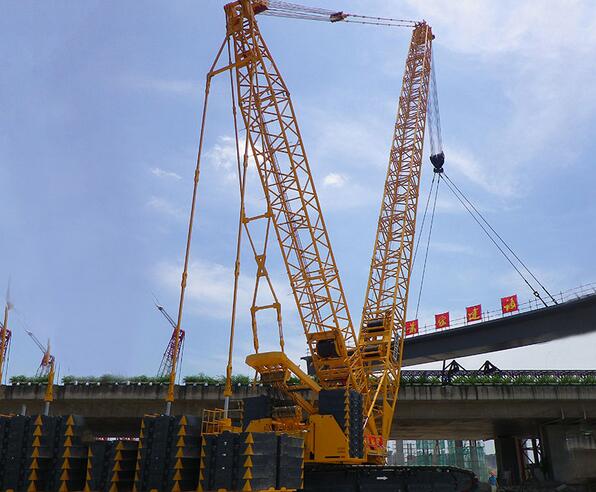

Crawler crane
QUY650
QUY650 — Crawler crane. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Max. lifting capacity | t | 650 |
| Light boom length | m | 66-102 |
| Fixed Jib length | m | 12-36 |
| Tower attachment length | m | 24-84 |
| Light boom length | m | 90-138 |
| Fixed Jib length | m | 12 |
| Tower attachment length | m | 24-96 |
| Max. single line hoisting speed( with no load,at 6th layer) | m/min | 130 |
| Max. single line speed for boom elevating system(with no load,at 6th layer) | m/min | 58×2 |
| Max. single line speed for tower attachment elevating system(with no load,at 6th layer) | m/min | 115 |
| Max. single line speed for sideways superlift elevating system (with no load,at 6th layer ) | m/min | 115 |
| Swing speed | r/min | 0.65 |
| Propel speed | km/h | 1.0 |
| Mean ground pressure | MPa | 0.146 |
| Engine output | kW | 494 |
| Total mass (with 650t hook block,24m heavy boom) | t | 530 |
| Max. weight of single part(main machine) in transport state | t | 74 |
| Dimension of single part(main machine) in transport state(L×W×H) | m | 12.6×3.4×3.4 |
