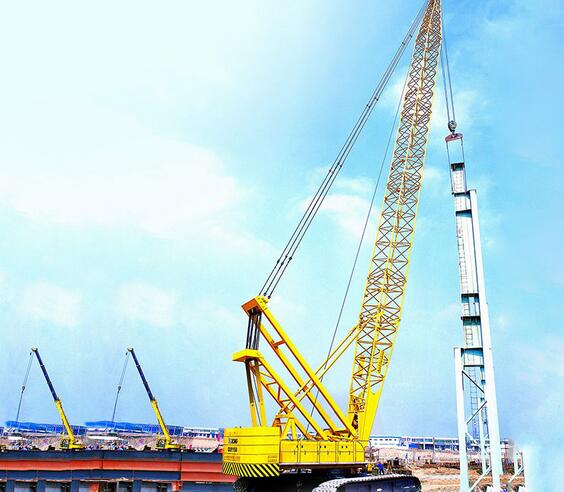

Crawler crane
QUY150
QUY150 — Crawler crane. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Max. lifting capacity | t | Boom |
| Jib | t | 15 |
| Max. load moment | kN.m | 8240 |
| Boom length | m | 19～82 |
| Boom elevating angle | ° | 30～80 |
| Fixed jib length | m | 12～30 |
| Fixed jib offset | ° | 10、30 |
| Max. single line hoist speed (at 5th layer with no load) | m/min | 120 |
| Max. single line hoist speed (at 5th layer with no load) | m/min | 30 |
| Max. swing speed | r/min | 1.5 |
| Max. travel speed | km/h | 1.0 |
| Max. grade-ability | — | 30% |
| Mean ground pressure | MPa | 0.093 |
| Engine output | kW | 220(volvo)/242(cummins) |
| Total mass (main hook block,19m boom) | t | 150 |
| Max. base machine weight for transport | t | 53.0 |
| Max. base machine dimension for transport (L×W×H) | m | 11.5×3.30×3.30 |
