Crawler crane

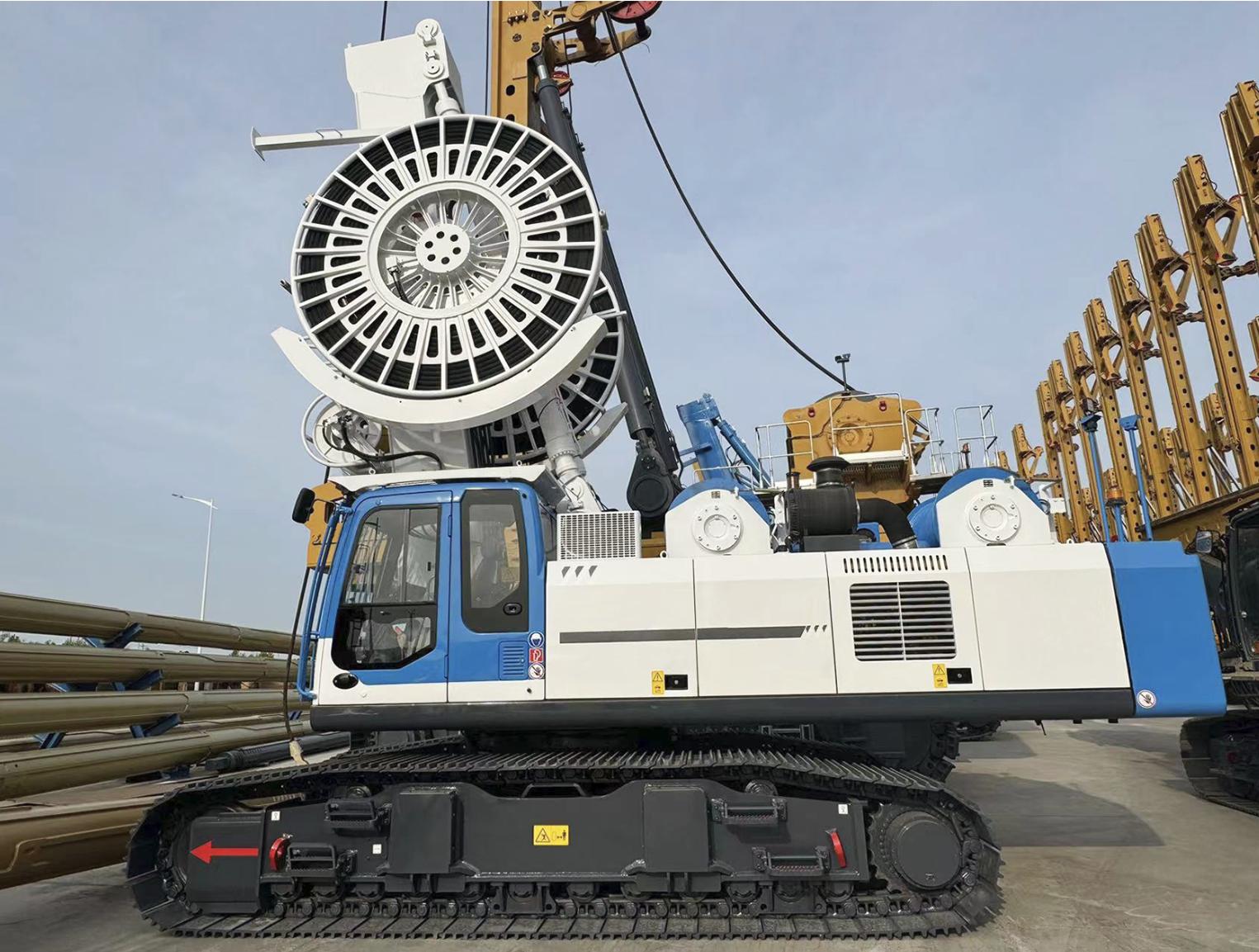

CANMAX AN500E
AN500E.pngModelAN500EEngineCumminsEngine modelQSM11Rated power298kw/1900rpmLifting capacity75tonLifi
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | AN500E |
| Engine | — | Cummins |
| Engine model | — | QSM11 |
| Rated power | — | 298kw/1900rpm |
| Lifting capacity | — | 75ton |
| Lifiting height | — | 15m |
| Max.lifting capacity | — | 2*250Kn |
| Max. winch speed | — | 50m/75min |
| Diameter of steel rope | — | φ30mm |
| Track shoe width | — | 800mm |
| Track width | — | 3500-4800mm |
| Track gauge | — | 5715mm |
| Rotation | — | 360° |
| Gradeability | — | 30° |
| Walking speed | — | 1.5km/h |
| Working dimension | — | 10400*4800*17300 |
| lransportation dimension | — | 13500*3500*3500 |
| Overall weight | — | 77ton |
