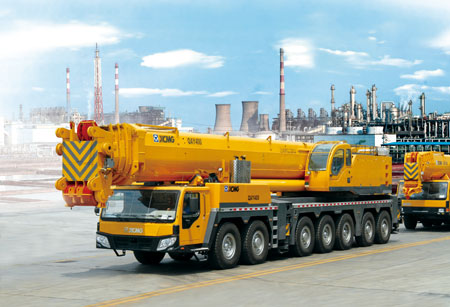

All terrain truck crane

QAY400

The product adopts 7-axle all terrain chassis, 5-segment oval-section jib, and single-cylinder no-rope automatic stretch and retract system. It has optional self-loading and unloading super-lift device, fixed extension jib, and luffing jib, featuring large working scope and stron

Parameters

Item Unit Value
Dimension (Unit) QAY400
Overall length mm 18850
Overall height mm 4000
Weight — Overall weight in transport kg 84000
Travel — Max. travel speed km/h 70
Travel — Min. turning diameter m 25
Travel — Approach angle ° 16
Travel — Departure angle ° 14
Travel — Max. grade ability % 40
Main performance — Max. rated total lifting capacity t 400
Main performance — Max. lifting torque kN.m 12152
Main performance — Longitudinal outrigger span m 9.5
Main performance — Lateral outrigger span m 9.8

Power

Item Unit Value
Engine model TAD750VE

OM502LA.III/5

Item Unit Value
Engine rated power (kW/(r/min)) 200/2300

420/1800

Item Unit Value
Engine rated torque (N.m/(r/min)) 2700/1080
