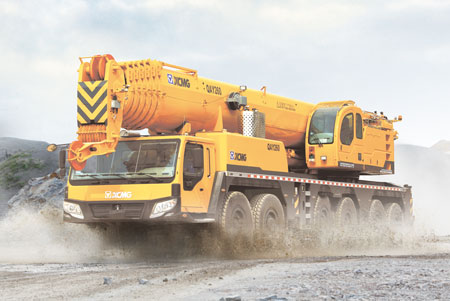

All terrain truck crane

QAY260

• As the final product of the new generation all terrain crane, QAY260 perfectly inherits the advantages of the previous products. • The product adopts 6-axle all terrain chassis, 12x12 full-axle steering mode. Adopt the imported Benz EFI engine with strong power, the maximum spe

Request a quote

Parameters

Item Unit Value
Dimension (Unit) — QAY260
Overall length mm 15850
Overall height mm 4000

Weight

Item Unit Value
Overall weight in transport kg 72000

Power

Item Unit Value
Engine model — TAD722VE

OM502LA.E3A/3

Item Unit Value
Engine rated power (kW/(r/min)) — 194/2100

420/1800

Item Unit Value
Engine rated torque (N.m/(r/min)) — 2700/1300

Travel

Item Unit Value
Max. travel speed km/h 72
Min. turning diameter m 23
Approach angle ° 16
Departure angle ° 18
Max. grade ability % 50

Main performance

Item Unit Value
Max. rated total lifting capacity t 260
Max. lifting torque kN.m 7980
Fully extended boom — 70
Fully extended boom+ jib m 101.5
Longitudinal outrigger span m 8.7
Lateral outrigger span m 8.8
