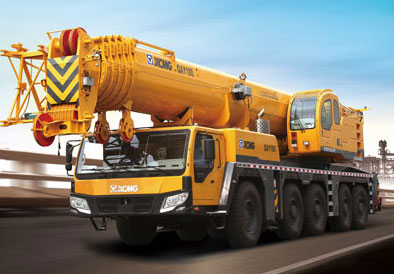

All terrain truck crane
QAY180
• QAY180 new terrain crane integrates 222 patent techniques, adopts 38 new patents techniques, and shows 8 technical highlights. • The overall length in travel is only 15.77m, the weight is 60t, the chassis length is 13.77m, and the minimum turning radius is 10m. The whole config
Parameters
| Item | Unit | Value |
|---|---|---|
| Dimension (Unit) | — | QAY180 |
| Overall length | mm | 15770 |
| Overall height | mm | 4000 |
| Weight — Overall weight in transport | kg | 60000 |
| Travel — Max. travel speed | km/h | 80 |
| Travel — Min. turning diameter | m | 20 |
| Travel — Approach angle | ° | 16 |
| Travel — Departure angle | ° | 13 |
| Travel — Max. grade ability | % | 50 |
| Main performance — Max. rated total lifting capacity | t | 180 |
| Main performance — Max. lifting torque | kN.m | 5420 |
| Main performance — Fully extended boom | m | 62 |
| Main performance — Longitudinal outrigger span | m | 8.3 |
| Main performance — Lateral outrigger span | m | 8.9 |
Power
| Item | Unit | Value |
|---|---|---|
| Engine model | — | TAD720VE OM460LA.E3A/1 |
| Engine rated power (kW/(r/min)) | — | 162/2100 360/1800 |
| Engine rated torque (N.m/(r/min)) | — | 2200/1100 |
