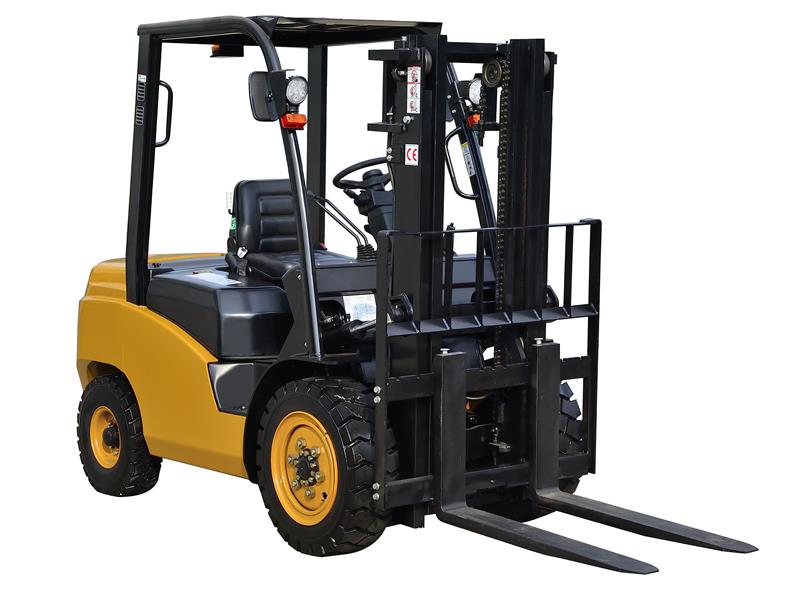

Diesel forklift
CPCQ30
CPCQ30 — Diesel forklift. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | CPC(Q)D30T8 |
| Power | — | Desiel engine |
| Rated load | kg | 3000 |
| Load Center | mm | 500 |
| Lifting height | mm | 3000 |
| Free lifting height | mm | 120 |
| Fork dimensions | mm | 1070×125×45 |
| Gate inclination angle | ° | 6/12 |
| The total length | mm | 2762 |
| Overall width | mm | 1200 |
| Mast lowered height | mm | 2005 |
| Mast lift height | mm | 4210 |
| Overhead guard height | mm | 2180 |
| Minimum turning radius | mm | 2450 |
| Min right angle aisle width | mm | 2950 |
| Speed | Km/h | 20 |
| Lifting speed | mm/sec | 400 |
| Maximum gradability | % | 20 |
| Tyre | — | The front wheel |
| Wheelbase | mm | 1700 |
| Minimum ground clearance | mm | 175 |
