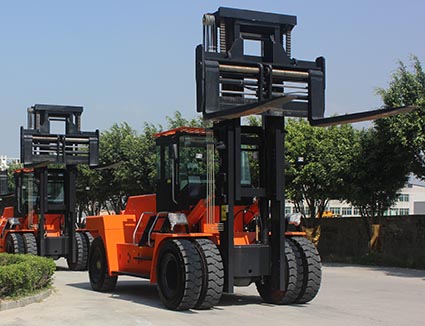

Diesel forklift
CPCD250
1, adopt Cummins, Weichai, Yuchai turbocharging engine, powerful, energy conservation, environmental protection, satisfies the requirement of high efficiency operation. 2, use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condi
Parameters
| Item | Unit | Value |
|---|---|---|
| Configuration (Model) | — | CPCD250 |
| Load center | mm | 1250 |
| Mast tilt angle (front/rear) (o) | — | 6/12 |
| Width | mm | 3050 |
| Height | mm | 3860 |
| Mast lifting height | mm | 3500 |
| Fork size (L*W*H) | mm | 2440*280*110 |
| Min. turning radius | mm | 6700 |
| Max. travel speed (unload) | km/h | 28 |
| Lifting speed (with load) | mm/s | 260 |
| Gradeability (with load) | % | 20 |
| Weight | kg | 35000 |
| Rear | — | 2*14.00-24/28PR |
| Wheelbase | mm | 4400 |
| Min. ground clearance | mm | 250 |
| Rated power/rotate speed | Kw/r.pm | 162/2200 |
| Max. torque / rotate speed | N.m/r.pm | 850/1450 |
