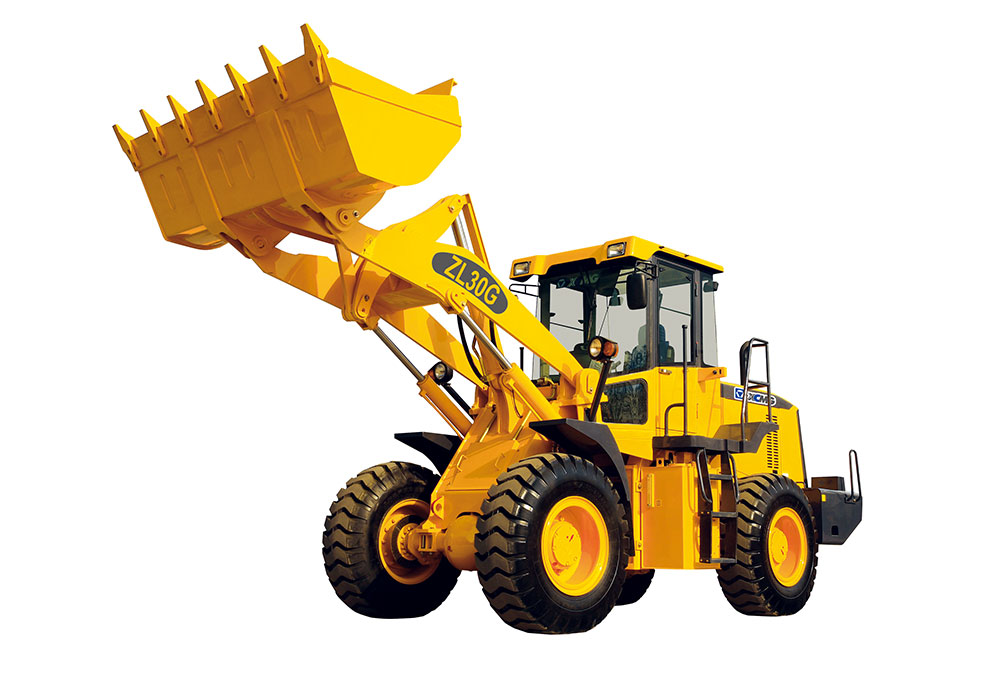

Parameters
Overall dimensions
| Item | Unit | Value |
|---|---|---|
| Overall 1ength (bucket on the ground) | — | 7250 mm |
| Bucket width | — | 2470 mm |
| Overall height | — | 3290 mm |
| Wheel base | — | 2900 mm |
| Tread | — | 1850 mm |
| Min. ground clearance | — | 370 mm |
Specification
| Item | Unit | Value |
|---|---|---|
| Rated capacity | — | 3000 kg |
| Bucket volume | — | 1.8 m3 |
| Operating weight | — | 10.8 t |
Traveling speeds ()
| Item | Unit | Value |
|---|---|---|
| Ⅰ | — | 8 km/h |
| Ⅱ | — | 13 km/h |
| Ⅲ | — | 27 km/h |
| Ⅳ | — | 36 km/h |
| Reverse Ⅰ | — | 8 km/h |
| Reverse Ⅱ | — | 13 km/h |
| Reverse Ⅲ | — | 27 km/h |
| Max. tractive force | — | 90 KN |
| Max. climbing gradient | — | 28 º |
| Max. dumping angle | — | 45 º |
| Max. dumping height | — | 2930 mm |
| Dumping reach | — | 1000 mm |
Overturn angle of bucket
| Item | Unit | Value |
|---|---|---|
| The lowest position | — | 43 º |
| The highest position | — | 57 º |
| Bucket automatic leveling function | — | yes |
| Max. Breakout force | — | 130 KN |
| Total cycling time | — | 10 S |
Min. Turning radius
| Item | Unit | Value |
|---|---|---|
| Outside of the bucket | — | 5170 mm |
| Turning angle of the frames | — | 38±1 º |
| Oscillating angle of the rear axle | — | ±12 º |
| Engine | — | Rated Power Rated Speed Maximum Torque |
| 1006D-6TA92 | — | 92 2300 460/1400~1600 |
Torque converter
| Item | Unit | Value |
|---|---|---|
| Model | — | YJ315X-2 |
| Type | — | 1 stage, 3-elements, single turbo |
| Cyclic diameter | — | 315 mm |
| Conversion coefficient | — | K=4.458 |
| Cooling method | — | Oil cooling-pressure circulating type |
| Oil inlet pressure | — | 0.3~0.45Mpa |
| Oil outlet pressure | — | 0.2~0.3Mpa |
(2).Transmission
| Item | Unit | Value |
|---|---|---|
| Model | — | BS428(YD 13004059) |
| Type | — | Fixed shaft type, power shift |
| Gear number | — | 4 forward and 3 reverse |
| Ⅰ | — | 3.91 |
| Ⅱ | — | 2.304 |
| Ⅲ | — | 0.964 |
| Ⅳ | — | 0.617 |
| Transmission working oil pressure | — | 1.5-1.7MPa |
| Transmission oil pump model | — | CBN-E46 |
| Displacement of transmission oil pump | — | 46 ml/r |
Front and rear axle
| Item | Unit | Value |
|---|---|---|
| Speed ratio | — | 5.286 |
Hub reducer
| Item | Unit | Value |
|---|---|---|
| Type | — | One stage-planetary deceleration |
| Speed ratio | — | 3.882 |
Tyres
| Item | Unit | Value |
|---|---|---|
| Tyre specification | — | 17.5-25 |
| Inflating pressure | — | Fore tyre: 0.32-0.35 MPa |
Braking system
| Item | Unit | Value |
|---|---|---|
| Foot brake | — | Oil disc braking on 4 wheels |
| Braking air pressure | — | 784-833 KPa |
| Hand brake | — | Clamp disc brake |
Steering system
| Item | Unit | Value |
|---|---|---|
| System pressure | — | 12 MPa |
| Max turning angle | — | ±38º |
Hydraulic system of the working device
| Item | Unit | Value |
|---|---|---|
| System pressure | — | 16 MPa |
Oil liquid volume
| Item | Unit | Value |
|---|---|---|
| Fuel (diesel) | — | 180 L |
| Lubricating oil of engine | — | 20 L |
| T/M & T/C oil | — | 32 L |
| Hydraulic reservoir | — | 170 L |
| Axle | — | 25 L |
