Wheel loader

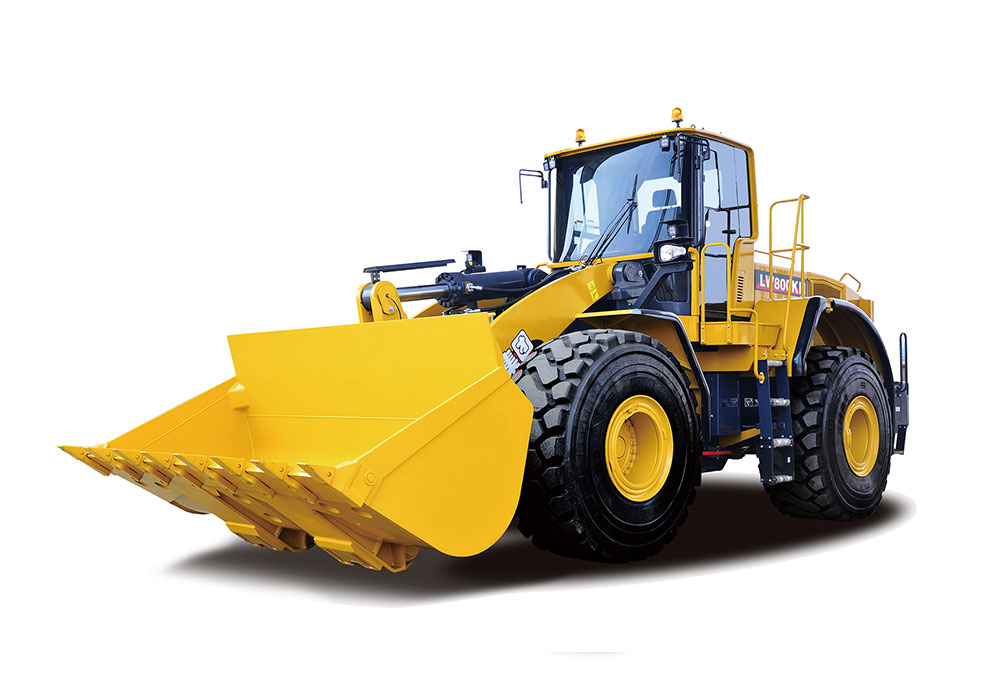

LW800KN(CE)
4.2.1 Overall dimensionsOverall 1ength (bucket on the ground)9300
Parameters
4.2.1 Overall dimensions
| Item | Unit | Value |
|---|---|---|
| Overall 1ength (bucket on the ground) | — | 9300 mm |
| Overall width (Outside the tyres) | — | 3210 mm |
| Bucket width | — | 3550 mm |
| Overall height | — | 3700 mm |
| Wheel base | — | 3600 mm |
| Tread | — | 2460 mm |
4.2.2 Specification
| Item | Unit | Value |
|---|---|---|
| Rated capacity | — | 8000 kg |
| Bucket volume | — | 4.5 m3 |
| Operating weight | — | 28.5t |
Traveling speeds km/h
| Item | Unit | Value |
|---|---|---|
| Forward Ⅰ/ reverse Ⅰ | — | 7月7日 |
| Forward Ⅱ/ reverse Ⅱ | — | 11.5/11.5 |
| Forward Ⅲ/ reverse Ⅲ | — | 24.5/24.5 |
| Forward Ⅳ/ reverse Ⅳ | — | 35 |
| Max. tractive force | — | 245 KN |
| Max. climbing gradient | — | >25 º |
| Max. dumping angle | — | 45 º |
| Max. dumping height | — | 3400mm |
| Dumping reach | — | 1400mm |
| Overturn angle of bucket | — | ≥45° |
| Max. Breakout force | — | 260kN |
| Max excavating depth | — | 75mm |
| Rising time of the boom | — | ＜7s |
| Total cycling time | — | ≤12 s |
| Min. Turning radius | — | 6175 mm |
| Crossing radius | — | 7460mm |
| Turning angle of the frames | — | 40º |
| Oscillating angle of the rear axle | — | ±12 º |
4.2.3 Engine
| Item | Unit | Value |
|---|---|---|
| Model | — | QSM11-C335 Tier3 |
| Type | — | 4-stroke, water cooling, turbine charged . |
| Rated power | — | 250kW |
| Rated speed | — | 2100r/min |
| Max. torque | — | 1674N.m/1400r/min |
| Start type | — | Electrical start |
| Flameout type | — | Cut off the oil and electricity |
Model
| Item | Unit | Value |
|---|---|---|
| Type | — | 1 stage, 3-elements |
| Coefficient of torque converter | — | K=2.985 |
| Cooling method | — | Oil cooling-pressure circulating type |
| Diameter of cycle | — | 370mm |
(b).Transmission
| Item | Unit | Value |
|---|---|---|
| Model | — | 4WG-310 |
| Gear number | — | Forward 4/ reverse 3 |
Transmission ratio
| Item | Unit | Value |
|---|---|---|
| Forward Ⅰ/ reverse Ⅰ | — | 3.731/3.731 |
| Forward Ⅱ/ reverse Ⅱ | — | 2.207/2.207 |
| Forward Ⅲ/ reverse Ⅲ | — | 0.970/0.970 |
| Forward Ⅳ/ reverse Ⅳ | — | 0.608 |
(c).Front and rear axle
| Item | Unit | Value |
|---|---|---|
| Model | — | ZF MT-L3125II/MT-L3115II |
| Total speed ratio | — | 27 |
| Type | — | One stage speed reduction |
| Rim reduction | — | 6.35 |
| Type | — | One stage planetary reduction |
4.2.5 Tyres
| Item | Unit | Value |
|---|---|---|
| Front axle | — | Fixed with frame |
| Rear axle | — | Swing type |
| Tyre specification | — | 29.5-25 |
| Inflating pressure | — | Fore tyre: 0.32~0.34MPa |
4.2.6 Braking system
| Item | Unit | Value |
|---|---|---|
| Foot brake | — | Brake on 4 wheel |
| System pressure | — | 17.5Mpa |
| The highest oil pressure of brake | — | 79bar |
| Hand brake | — | Electrical contron and spring boosting |
| Released oil pressure of hand brake | — | 10.2 Mpa |
| Brake valve model | — | 06-466-444 |
| Booster model | — | SB0250-3.5E1/112A-210AK |
4.2.7 Steering hydraulic system
| Item | Unit | Value |
|---|---|---|
| Type | — | Hydraulic steering |
| Model of steering oil pump | — | P7600-F80NO367 6/P124-G16DI |
| Steering unit model | — | BZZ3-125 |
| Flow amplified valve | — | ZLF25A1 |
| Steering limit valve | — | XF－B6 |
| Displacement of pump | — | 80ml/r |
| System pressure | — | 19±0.5MPa |
| Steering cylinder | — | ф110×405 |
| Maximum steering angle | — | 40° |
4.2.8 Hydraulic system of the working device
| Item | Unit | Value |
|---|---|---|
| Working oil pump | — | P7600-F140NP367 6G-R |
| Displacement of oil pump | — | 140ml/r(+80ml/r) |
| System pressure | — | 20±0.5MPa |
| Boom cylinder | — | ф180×885 |
| Tilt cylinder | — | ф220×590 |
4.2.9 Pilot hydraulic system
| Item | Unit | Value |
|---|---|---|
| Pilot pump | — | P7600-F80NO367 6/P124-G16DIG |
| Displacemnt of pump | — | 16ml/r |
| Pilot valve | — | 5THF606-2X |
4.2.10 Oil filling volume
| Item | Unit | Value |
|---|---|---|
| Fuel | — | 420L |
Engine oil
| Item | Unit | Value |
|---|---|---|
| QSM11 | — | 33L |
| Gearbox/torque converter oil | — | 64 L |
| Working hydraulic oil | — | 340L |
| Gear oil for drive axle | — | 54L/piece |
