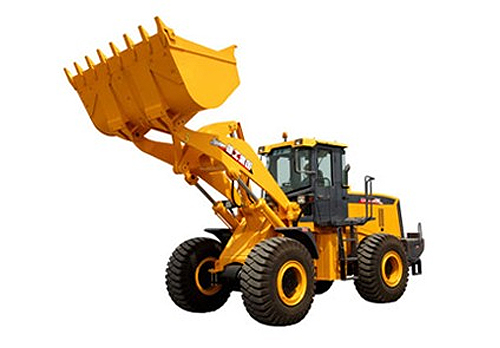

Wheel loader
LW600K
LW600K is the main model of K series after G series. Power drive flexible suspension damping; dual-pump combined technology, flow expanding steering, guide control; the frame of the high strength adapts to the heavy load condition; XCMG unique working mechanism lightens the unloa
Parameters
| Item | Unit | Value |
|---|---|---|
| Rated bucket capacity | — | 3.5m³ |
| Rated load | — | 6000kg |
| Operating weight | — | 20000kg |
| Min. clearance | — | 467mm |
| Max. traction | — | 171kN |
| Max.drawing force | — | 201kN |
| Boom lifting time | — | 5.7s |
| Total time of three devices | — | 10.9s |
| Engine (Model) | — | Cummins QSC8.3 |
| Type | — | 6-cylinder, 4-stroke, electronic injection, turbocharging |
| Rated power | — | 179kW |
| Rated rotary speed | — | 2200r/min |
| Travel speed | Forward/Backward I Gear | 6/6km/h |
| Tyre model | — | 23.5-25 |
