Wheel loader

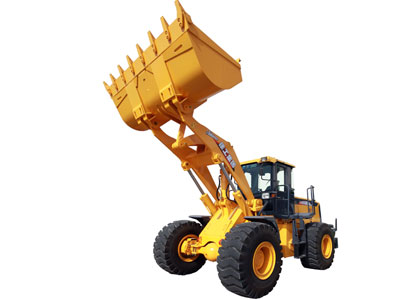

LW500KL
Strong structure Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity. The large rock bucket with capacity of 3.0m³ is improved in terms of the work efficiency an
Parameters
| Item | Unit | Value |
|---|---|---|
| Rated load | kg | 5000 |
| Tipping load | kN | 110 |
| Bucket capacity | m | 3.0 |
| Dumping height | mm | 3090 |
| Dumping distance | mm | 1130 |
| Lifting height | mm | 5262 |
| Bucket width | mm | 3000 |
| Max.drawing force | kN | 170 |
| Max. traction | kN | 175 |
| Articulation angle | ° | ±38 |
| Dimension (Length × Width × Height ) | mm | 8185×3000×3465 |
| Operating weight | t | 17.4 |
| Boom lifting time | s | ≤6 |
| Total time of three devices | s | ≤11 |
| Wheelbase | mm | 3300 |
| Tread | mm | 2250 |
| Min. turning radius(tyre center) | mm | 5925 |
| Min. turning radius (bucket outside) | mm | 6910 |
| Rated power/rotary speed | kW/r/min | 162/2200 |
| Engine model | — | WD10G220E23 |
| Gradeability | ° | 30 |
| Speed (I Gear (Forward/Backward)) | — | 11/13 |
| II Gear (Forward) | km/h | 36 |
| Tyre specification | — | 23.5-25-16PR |
