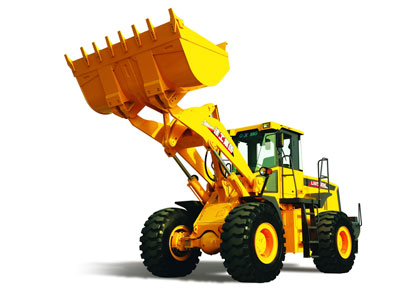

Products / Earthmoving / Wheel loader / LW500K Parameters Long boom parameter Item Unit Value Rated load — 4.0t Bucket capacity — 3.5 Dumping height — 3550mm Dumping distance — 1300mm Item (Standard bucket) — Coal bucket
Item Unit Value Max.drawing force kN 170 Max. traction kN 165 Dimension mm 8185×3000×3465 Operating weight kg 17200 Boom lifting time (≤6.0) — ≤6.0 Min. turning radius (bucket outer) mm 6910 Rated power kW 162 Travel speed (I Gear (Forward/Backward)) — 0-11.5/16.5 II Gear (Forward) km/h 0-38
Attachment parameter—snow plow Item Unit Value Pushing snow width mm 3800 Horizontal rotary angle ° ±38 Vibrating angle ° ±6 Obstacle crossing height mm 0~150 Rated power KW 162
Min. circle diameter and max. opening Item Unit Value Basic model — ￠800×1990 IV model — ￠430×2000
Attachment parameter－Sliding fork Item Unit Value Fork folding angle ° 20 Attachment length mm 2053 Attachment width mm 2516 Attachment height mm 1200 Fork teeth length mm 1200
Attachment parameter－Side dumping Item Unit Value Bucket width mm 3000 Dimension mm 8310×3040×3465 Dumping height(straight/side) dumping mm 2960/4125 Dumping distance(straight/side) dumping mm 1272/105 Lifting height(straight/side) dumping mm 5407/6830
