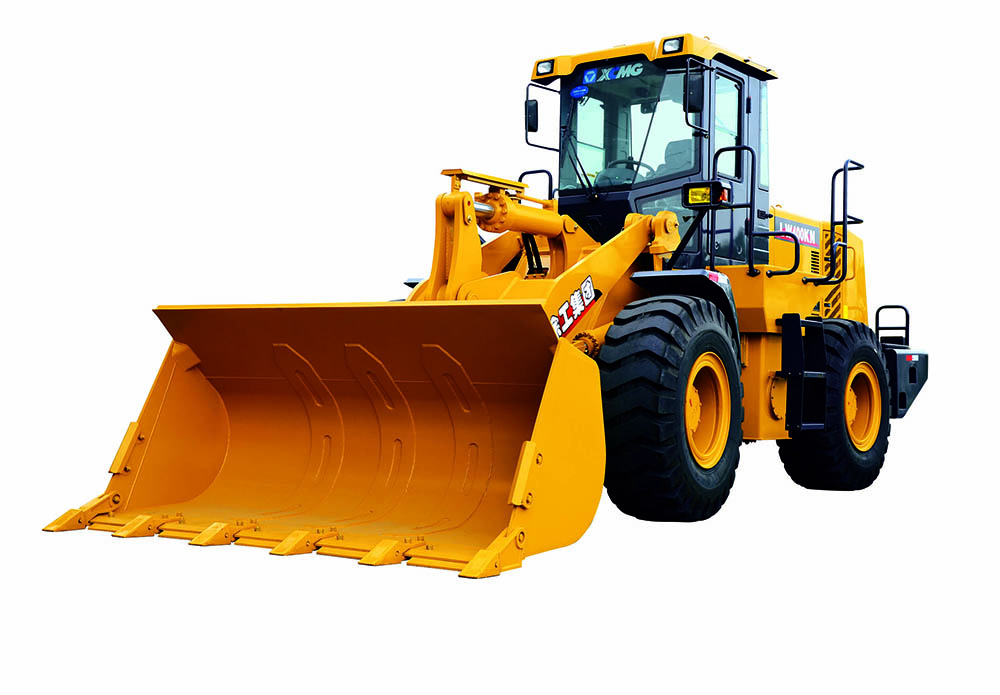

Wheel loader
LW400KV
The design of the machine is more reasonable, adopting hydrodynamic-mechanical transmission and four-wheel drive, and featuring large driving force and digging force; With the small turning radius, the machine is portable and agile, which is applicable to the operation in narrow
Parameters
| Item | Unit | Value |
|---|---|---|
| Rated bucket capacity | m³ | 2.4 |
| Rated load capacity | kg | 4000 |
| Total weight | kg | 14500 |
| Dumping height | mm | 2840 |
| Max. digging force | kN | 120 |
| Rated load | — | 2350/2700/3000t |
| Dumping distance | — | 850 mm |
| Lifting time | — | ≤5s |
| Total time of three devices | — | ≤10s |
| Digging force | — | 50kN |
| Articulated angle | — | 35±1 |
| Wheeelbase | — | 2200 mm |
| Tread | — | 1490 mm |
Speed
| Item | Unit | Value |
|---|---|---|
| Rated power | — | 60kW |
| Model | — | LR4105G72DA |
| Type | — | Natural intake |
| Rated rotary speed | — | 2400r/min |
| Dimension: (Length×Width×Height) | — | 5520×1960×2850mm |
| Overall weight | — | 6.0t |
| Tyre specification | — | 16/70-20 |
| Overall dimensions(L×W×H) | — | 5520×1960×2850mm |
| rated weight | — | 2t |
| Dumping clearance | — | 2350/2700/3000mm |
| Dumping reach | — | 900mm |
| Breakout fore | — | 50KN |
| Wheel base | — | 2200mm |
| Rated speed | — | 2400r/min |
| Ist(F/R) | — | 6/6km/h |
| 2nd(F/R) | — | 24/24km/h |
| Total cycling time | — | <10s |
| Tyres | — | 16/70-20 |
| Operating weight | — | 6t |
