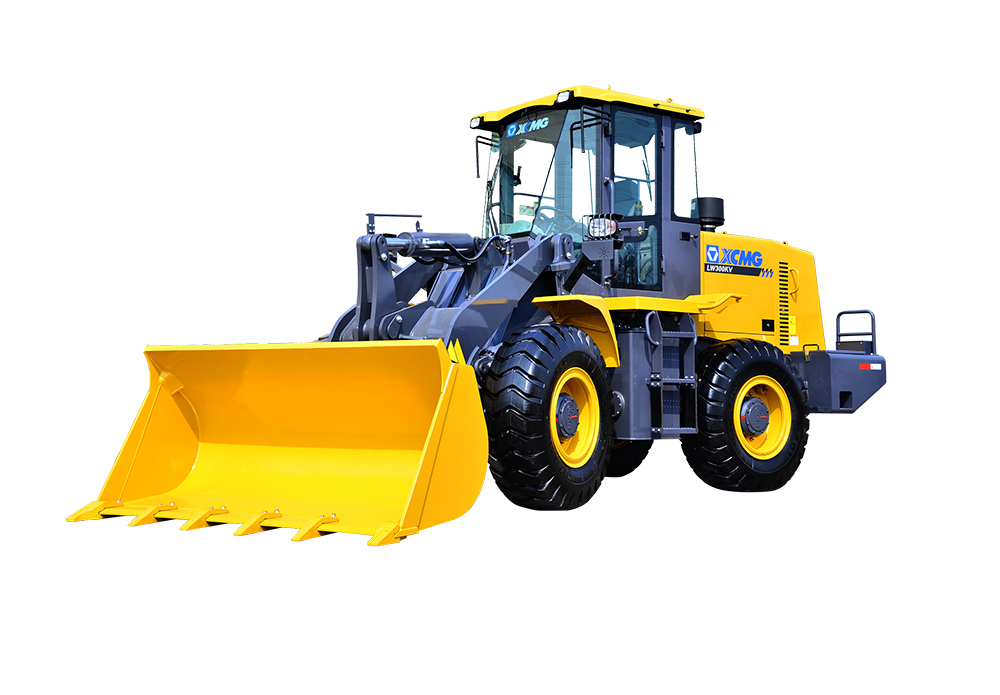

Wheel loader
LW300KV
DescriptionSpecificationUnitRated operating load3000kgBucket capacity1.5 〜2.5m3Machine
Parameters
| Item | Unit | Value |
|---|---|---|
| Rated operating load | kg | 3000 |
| Bucket capacity | m3 | 1.5 〜2.5 |
| Machine weight | kg | 10600±200 |
| Dump clearance at maximum lift | mm | 2770-3260 |
| Reach at maximum lift | mm | 1010-1210 |
| Wheel base | mm | 2900 |
| Tread | mm | 1850 |
| Height of hinge at maximum lift height | mm | 3839 |
| Working height(fully lifted) | mm | 4870 |
| Max.breakout force | kN | 130 |
| Max.horse power | kN | 95 |
| Hydraulic cycle time-raise | s | 4.9 |
| Total hydraulic cycle time | s | 8.8 |
| Min. turning radius over tyres | mm | 5170 |
| Articulation angle | ° | 38±1 |
| Gradeability | ° | 28 |
| Tyre size | — | 17.5-25-12PR |
| Overall machine dimension LxWxH | mm | 7245x2482x3320 |
| Model | — | WP6G125E333/SC7H125.1G3 |
| Emission standards | — | EURO III |
| Rated Power/Speed | kW/rpm | 92/2000 |
| Fuel Tank | L | 165 |
| Hydraulic Tank | L | 165 |
