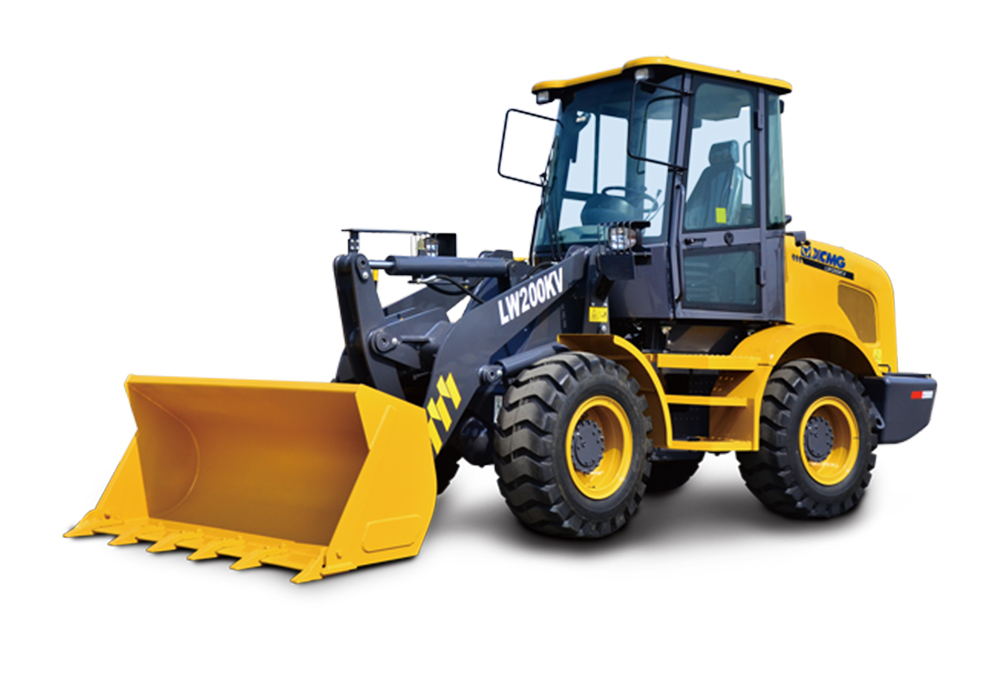

Wheel loader
LW200KV
DescriptionSpecificationUnitModelLW200KVRated operating load2000kgBucket capacity0.9-1
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | LW200KV |
| Rated operating load | kg | 2000 |
| Bucket capacity | m3 | 0.9-1.1 |
| Machine weight | kg | 6300 |
| Dump clearance at maximum lift | mm | 2530-2950 |
| Reach at maximum lift | mm | 860-980 |
| Wheel base | mm | 2300 |
| Tread | mm | 1550 |
| Max.breakout force | kN | 60 |
| Min. turning radius over tyres | mm | 4470 |
| Articulation angle | ° | 35 |
| Gradeability | ° | 28 |
| Tyre size | — | 16/70-20 |
| Overall machine dimension LxWxH | mm | 6045x2060x2950 |
| Model | — | LR4B3ZU24/0662 |
| Rated Power/Speed | kW/rpm | 66.2/2400 |
