Skid steer loader

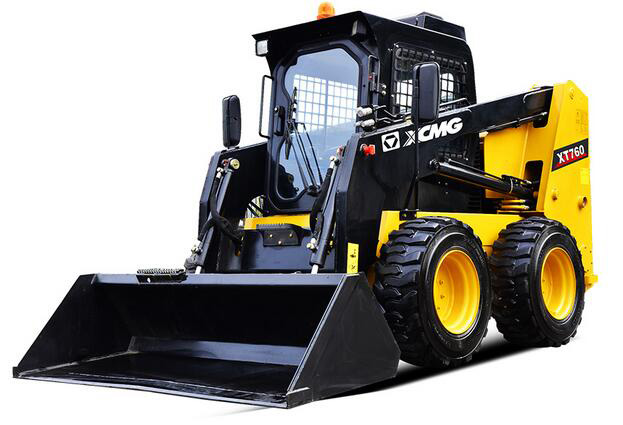

XT760
1,Reliable and durable frame work prolong the machine using life. 2,The original imported engine generates super power and low exhaust,which makes the macine environmental. 3,Optimum hydraulic system design grantee efficient work. 4,The integral FOPS & ROPS and human-engineering
Parameters
| Item | Unit | Value |
|---|---|---|
| Overall dimensions | — | 3849mm×1950mm×2083mm |
| Operating weight | — | 3900kg |
| Tires | — | 12-16.5NHS 10RP |
| bucket capacity | — | 0.65m3 |
| Rated load | — | 1100kg |
| Dumping clearance | — | 2479mm |
| Dumping reach | — | 748mm |
| raising time | — | <5s |
| Total cycling time | — | <10.5s |
| breakout force | — | 22KN |
| wheel base | — | 1246mm |
| tread | — | 1475mm |
| engine | — | Weichai 60KW |
| model | — | D226B-4 |
| rated power | — | 60kw |
| rated speed | — | 2500r/min |
| traveling speed | — | 12km/h |
