Skid steer loader

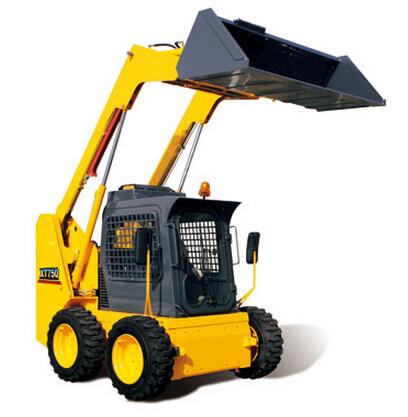

XT750
The hydraulic oil tank, fuel tank and the chassis are integrated in one structure, which saves space, and the machine is more rigid. The world famous YANMAR engine and Rexroth hydraulic systems ensure that the machine can be applicable to various kinds of work. The proportional c
Parameters
| Item | Unit | Value |
|---|---|---|
| Bucket capacity | — | 0.55m3 |
| Rated load capacity | — | 950kg |
| Max. unloading height | — | 2365Mm |
| Unloading distance | — | 625Mm |
| Hoist time | — | <5s |
| Time of 3 operations | — | <10s |
| Breakout force | — | 16KN |
| Wheelbase | — | 1116mm |
| Wheel center distance | — | 1475 mm |
| Max. travel speed | — | 12.6Km/h |
| Engine | — | Yanmar |
| Model | — | 4TNV98-ZNWL |
| Type | — | 4 stroke, water-cooled, In-line |
| Rated power | — | 50.8 Kw |
| Rated rev | — | 2500 R/min |
| Machine size (L×W×H) | — | 3625×1830×2093 mm |
| Machine weight | — | 3.6 t |
| Tyre size | — | 12-16.5 |
