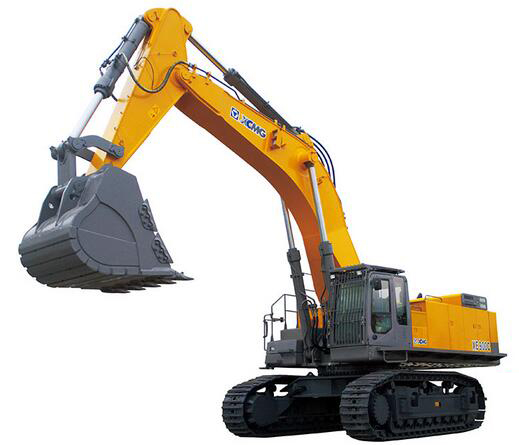

Crawler excavator
XE900C
Project Operation weight Bucket capacity Output power Bucket digging force Max. digging height Max. digging depth Max. digging reach Unit (Kg) (m³) (kw/rpm) (kN) (mm) (mm) (mm) Parameter 87100 3.5～6.0 395/1800 480 12060 7250 12330
Parameters
| Item | Unit | Value |
|---|---|---|
| Operation weight | Kg | 87100 |
| Bucket capacity | m³ | 3.5～6.0 |
| Output power | kw/rpm | 395/1800 |
| Bucket digging force | kN | 480 |
| Max. digging height | mm | 12060 |
| Max. digging depth | mm | 7250 |
| Max. digging reach | mm | 12330 |
