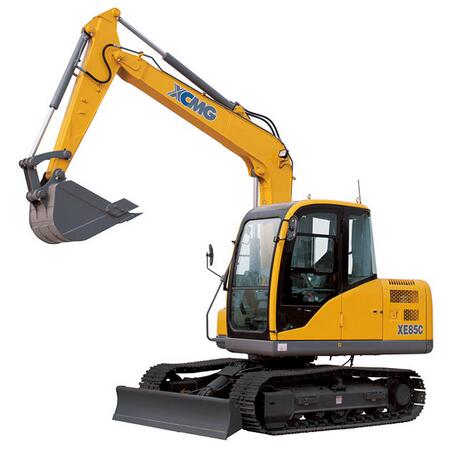

Crawler excavator
XE85C
Project Operation weight Bucket capacity Output power Bucket digging force Max. digging height Max. digging depth Max. digging reach Unit (Kg) (m³) (kw/rpm) (kN) (mm) (mm) (mm) Parameter 7700/81007700/8100 (with bulldozer blade) 0.34 53.8/2150 51.2 7165 4130 6295
Parameters
| Item | Unit | Value |
|---|---|---|
| Operation weight | Kg | 7700/81007700/8100 (with bulldozer blade) |
| Bucket capacity | m³ | 0.34 |
| Output power | kw/rpm | 53.8/2150 |
| Bucket digging force | kN | 51.2 |
| Max. digging height | mm | 7165 |
| Max. digging depth | mm | 4130 |
| Max. digging reach | mm | 6295 |
