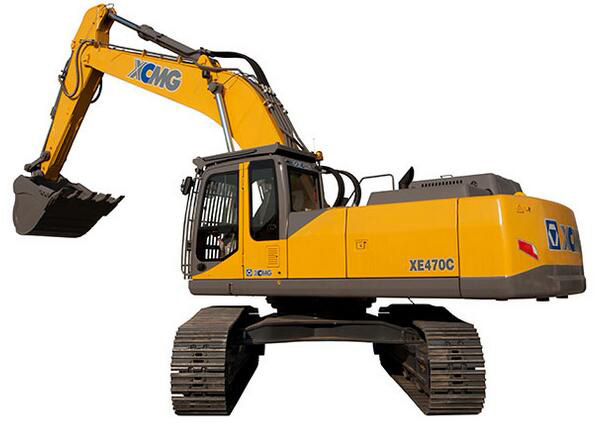

Crawler excavator
XE470C
Project Operation weight Bucket capacity Output power Bucket digging force Max. digging height Max. digging depth Max. digging reach Unit (Kg) (m³) (kw/rpm) (kN) (mm) (mm) (mm) Parameter 46100 2.1～2.5 250/2000 284 10675 7337 11631
Parameters
| Item | Unit | Value |
|---|---|---|
| Operation weight | Kg | 46100 |
| Bucket capacity | m³ | 2.1～2.5 |
| Output power | kw/rpm | 250/2000 |
| Bucket digging force | kN | 284 |
| Max. digging height | mm | 10675 |
| Max. digging depth | mm | 7337 |
| Max. digging reach | mm | 11631 |
