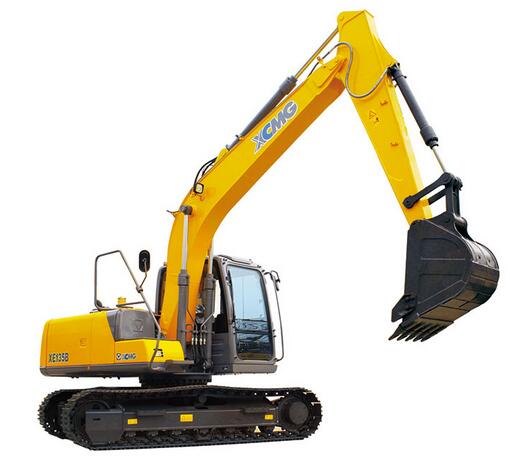

Crawler excavator
XE135B
Project Operation weight Bucket capacity Output power Bucket digging force Max. digging height Max. digging depth Max. digging reach Unit (Kg) (m³) (kw/rpm) (kN) (mm) (mm) (mm) Parameter 13000 0.4-0.52 72.7/2200 85 8641 5538 8296
Parameters
| Item | Unit | Value |
|---|---|---|
| Operation weight | Kg | 13000 |
| Bucket capacity | m³ | 0.4-0.52 |
| Output power | kw/rpm | 72.7/2200 |
| Bucket digging force | kN | 85 |
| Max. digging height | mm | 8641 |
| Max. digging depth | mm | 5538 |
| Max. digging reach | mm | 8296 |
